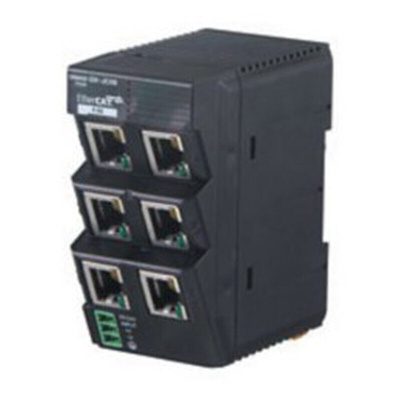

GX-JC06, Omron, 6 Channel(s)

EtherCAT Junction Slaves

Professional range of GX series EtherCAT junction slaves from Omron. The EtherCAT junction slaves are designed for open network realize super high-speed machine control. With the JC03 and JC06 junction slaves the efficiency in assembling and wirings are improved, shortening the time required to start the system operation. JC03 is a 3-port T-Brnching junction slave where the JC06 is a 6-port star wiring junction slave. All EtherCAT junction slaves are reliable and excellent quality.

Features & Benefits

Realising flexible wiring by daisy chain and branch
Compact size as the industry's smallest
Compact size as width 25 mm (3-port type) realising space saving on the board
Power supply voltage operable for long-distance wiring Operable with 24 V dc. The range of power supply voltage is from maximum 28.8 V dc to minimum 20.4 V dc in consideration of a power voltage drop by long-distance wiring.
