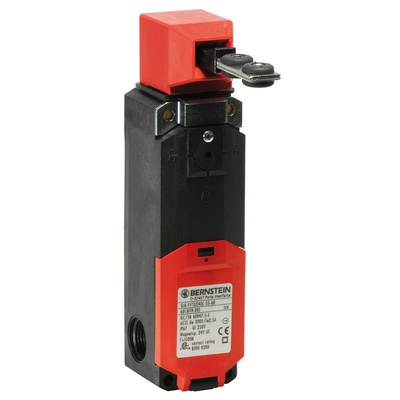

6018169054, Bernstein AG SLK Solenoid Interlock Switch Power to Unlock 24 V ac/dc

SLK Series Safety Limit Switches

Professional range of Bernstein safety limit switches from the SLK series. The limit switches incorporate triple coded anti-tamper mechanism and spring loaded terminals. All models are highly reliable and excellent quality.

Features & Benefits

Cable entry: 3 x M20 x 1.5
Separate Actuator (Stainless Steel)
Protection rating IP67
Spring-clamp Connection
Contact Type: 2 NC, 2NO
Actuators rotation in increments of 90°

Bernstein AG Safety Interlock Switch

The Bernstein AG SLK series safety interlock switch has a supply voltage rating of 24VAC/DC. It has 4NC contacts. The limit switch has incorporated triple coded anti-tamper mechanism and spring-loaded terminals.

Features and Benefits

Cable entry dimensions are 3 x M20 x 1.5
Separate actuator (stainless steel)
Spring-clamp connection
Actuators rotation in increments of 90°
Operating temperature ranging between -25°C and 70°C

Certifications

IP67 rated
VDE 0660 T100
DIN EN 60947-1
IEC 60947-1
VDE 0660 T200
DIN EN 60947-5-1
IEC 60947-5-1
GS-ET-19
DIN EN ISO 13849-1
DGUV certified
CSA certified
CCC certified

Safety Limit Switch

Datasheet
