3273286, Phoenix Contact Distribution Block, 12 Way, 0.14 → 4mm², 24A, 500 V, Grey

PTFIX Distribution Blocks

Phoenix Contact PTFIX series distribution blocks with push in connection offer a flexible distribution solution with different numbers of positions and mounting options. They can be used straight away and expanded as needed. Simply unpack, connect, and you are done.

Features and Benefits

Push in connection
Voltage: 500 V
Current: 24 A
Variants in 1.5 mm² and 2.5 mm²
2.5 mm² power blocks with additional 6 mm² terminal point
Number of terminal points: 6, 12 and 18
Can be bridged and aligned with standard plug-in bridges
Testing option for all common test probes

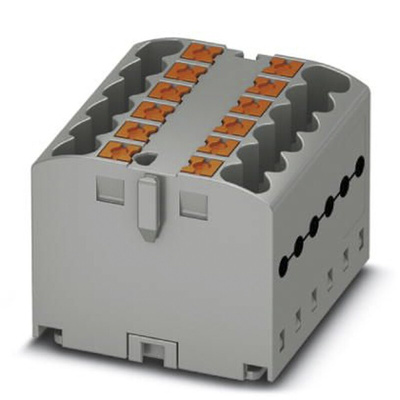

Phoenix Contact Grey Distribution Block, 12-Way, 24 A - PTFIX 12X2.5 GY - 3273286

Make the most of panel space in your industrial electrical units with this 12-way distribution block from Phoenix Contact. It's designed to make delivering power to branch circuits from the source simple.
The polyamide (PA) construction of this device ensures it can withstand the challenges of demanding industrial environments. It's designed to accept a wide range of solid and flexible wires, so you can quickly make secure connections. The push-in direct connection technology in each terminal means installation is fast and simple, as all you need to do is unpack and connect.
To mount this unit, simply snap it onto a DIN rail adapter. Distribution blocks like this one are a popular choice in LED (light-emitting diode) outdoor and street lighting, electrical machines and refrigeration control.

• Can be bridged and aligned with standard plug-in bridges
• Wire sizes of 26 and 12 AWG (American wire gauge)
• Compact size
• Transverse mounting
• Grey in colour
• Current rating of 24 A
• Voltage rating of 500 V
• Not fused
• 12 ways

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
