3273308, Phoenix Contact Distribution Block, 18 Way, 0.14 → 4mm², 24A, 500 V, Grey

PTFIX Distribution Blocks

Phoenix Contact PTFIX series distribution blocks with push in connection offer a flexible distribution solution with different numbers of positions and mounting options. They can be used straight away and expanded as needed. Simply unpack, connect, and you are done.

Features and Benefits

Push in connection
Voltage: 500 V
Current: 24 A
Variants in 1.5 mm² and 2.5 mm²
2.5 mm² power blocks with additional 6 mm² terminal point
Number of terminal points: 6, 12 and 18
Can be bridged and aligned with standard plug-in bridges
Testing option for all common test probes

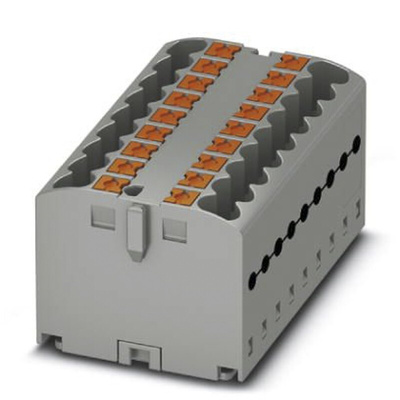

Phoenix Contact Grey Distribution Block, 18-Way, 24 A - PTFIX 18X2.5 GY - 3273308

This distribution block from Phoenix Contact helps power 12 branch circuits through a single electrical source. It's typically used in control panels, electrical substations and energy-efficient lighting systems to simplify load management.
The unit comes ready to mount and snaps onto any DIN rail adapter, so it's quick and simple to instal. The terminals feature innovative push-in direct technology, which saves you time and effort during wiring. All you need to do is gently push the wires into the terminal. The block accepts solid wires in the range of 26 to 12 AWG (American wire gauge), ensuring flexibility in industrial systems.
Thanks to the polyamide (PA) housing, you can be sure of a long service life, even in demanding industrial settings. This material also provides excellent insulation to keep you and your equipment safe from electric shocks.

• Ready-to-mount blocks that don't need manual bridging
• Tool-free wiring
• Transverse mounting design
• Current rating of 24 A
• Voltage rating of 500 V
• Dimensions of 46.5 (W), 28.2 (L) and 21.2 mm (H)
• Not fused
• Grey in colour

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
