3273395, Phoenix Contact Distribution Block, 6 Way, 0.14 → 4mm², 24A, 500 V, Grey

PTFIX Distribution Blocks

Phoenix Contact PTFIX series distribution blocks with push in connection offer a flexible distribution solution with different numbers of positions and mounting options. They can be used straight away and expanded as needed. Simply unpack, connect, and you are done.

Features and Benefits

Push in connection
Voltage: 500 V
Current: 24 A
Variants in 1.5 mm² and 2.5 mm²
2.5 mm² power blocks with additional 6 mm² terminal point
Number of terminal points: 6, 12 and 18
Can be bridged and aligned with standard plug-in bridges
Testing option for all common test probes

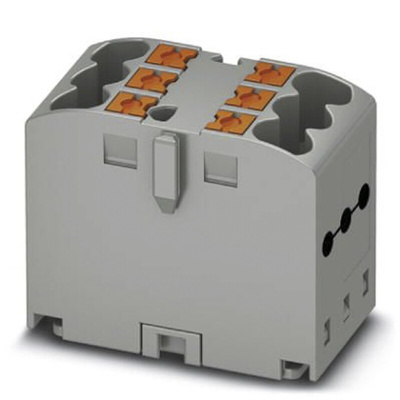

Phoenix Contact Grey Distribution Block, 6-Way, 24 A - PTFIX 6X2.5-G GY - 3273395

This 6-way distribution block from Phoenix Contact serves as a fixed junction to split an input power feed to secondary output circuits. It has a housing made of a durable polyamide (PA) material that provides effective insulation for protection against electric shocks. This material also offers good resistance, making the device well-suited to use in harsh environments.
The component features the reliable Phoenix Contact CLIPLINE push-in termination technology, which allows you to insert your conductors directly without the need for any specialist tools. This design also ensures high contact quality, giving you improved energy transmission for your applications.
The block's compact dimensions and transverse mounting design make it a good choice for use in small panel setups. It accepts a broad range of wire sizes from 26 to 12 AWG (American Wire Gauge), so it's compatible with a variety of applications.

Features and benefits:

• Cable cross-sectional area (CSA) of 0.14 to 4 mm²
• Grey in colour
• 6 ways
• Not fused
• Voltage rating of 500 V
• Current rating of 24 A

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
