3273482, Phoenix Contact Distribution Block, 13 Way, 0.14 → 4mm², 24 A, 41 A, 500 V, Grey

PTFIX Distribution Blocks

Phoenix Contact PTFIX series distribution blocks with push in connection offer a flexible distribution solution with different numbers of positions and mounting options. They can be used straight away and expanded as needed. Simply unpack, connect, and you are done.

Features and Benefits

Push in connection
Voltage: 500 V
Current: 24 A
Variants in 1.5 mm² and 2.5 mm²
2.5 mm² power blocks with additional 6 mm² terminal point
Number of terminal points: 6, 12 and 18
Can be bridged and aligned with standard plug-in bridges
Testing option for all common test probes

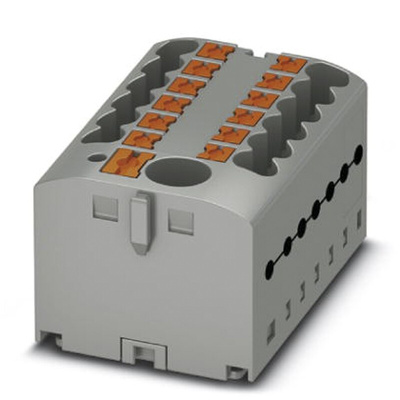

Phoenix Contact Grey Distribution Block, 13-Way, 24 A - PTFIX 6/12X2.5-G GY - 3273482

Use this distribution block from Phoenix Contact to provide a fixed junction for splitting primary input power into secondary output circuits. It supports voltages of up to 500 V and currents from 24 A to 41 A, making it a heavy-duty electrical component within a small footprint.
This distribution block has a polyamide (PA) housing that provides effective insulation against electrical hazards. It also offers efficient heat resistance, increasing safety and making this device suitable for use in harsh environments.
The component's compact design makes it easy to install in small spaces. The block also has a variety of mounting options to match your panel specifications, so it's highly versatile. The push-in termination technology lets you easily and directly connect output conductors to the terminals without using any tools.

• 13-way termination
• Grey in colour
• Not fused
• Cable CSA (cross-sectional area) of 0.14 to 4 mm²
• Wire size of 26 to 12 AWG (American wire gauge)
• Dimensions of 40.6 (W), 28.2 (L) and 21.2 mm (H)
• Complies with IEC 60947-7-1/IEC 60998-1 standards, ensuring a safe and reliable component
• Underwriters Laboratories (UL) 94 flammability rating V0 meaning flame goes out after 10 seconds

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
