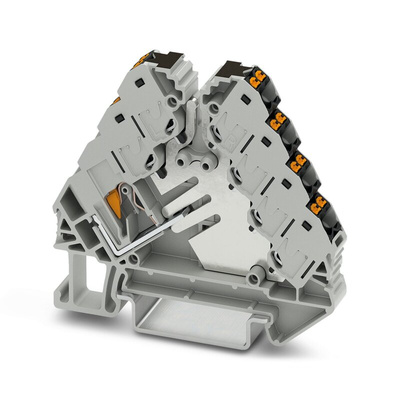

3270158, Phoenix Contact PTRVB Series PTRVB 4-FI /BK Distribution block, 13-Way, 17.5A, 26 → 14 AWG Wire, Push In

Phoenix Contact Distribution Block, 2.5mm² Maximum Wire Cross-Sectional Area, 10 to 12mm Stripping Length - PTRVB 4-FI /BK - 3270158

Looking for a simple and effective way to organise wiring in your automated system? Choose this distribution block from Phoenix Contact for the job. It houses up to 13 connections across four rows, so it's ideal for establishing order in a complex network. The unit feels at home in low-power systems, thanks to a 250V voltage rating. Its triangular shape and compact dimensions of 64 (H) x 8.3 (W) x 55.5mm (D) maximise space in your setup.
Linking wires couldn't be easier, thanks to a push-in connection method that means everything just clicks into place. This device delivers reliable performance in temperatures between -5°C and +70°C, so it withstands harsh industrial environments. An open side panel makes it easy to access the workings for intermittent maintenance tasks.

Features & Benefits

• Light 20g weight means load on your infrastructure is minimal
• 4kV surge protection prevents overvoltages from damaging your equipment
• UL 94-V0 rating means it self-extinguishes in under 10 seconds in the event of a fire
• Polyamide insulation boosts electrical safety
• Handles wire sizes between 24 and 10AWG for broad compatibility

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.

Datasheet

Line Drawing - 3270158
