3211886, Phoenix Contact PTTB 4-HESI (5X20) Series Black DIN Rail Terminal Block, 0.2 → 4mm², Double-Level, Push In

PTTB Double Level Terminal Blocks

Compact design for maximum space saving
Integrated labelling areas on every terminal point
Optional, large labelling option using STP ... double marker carriers
Link the levels to the FBS ...-PV bridges

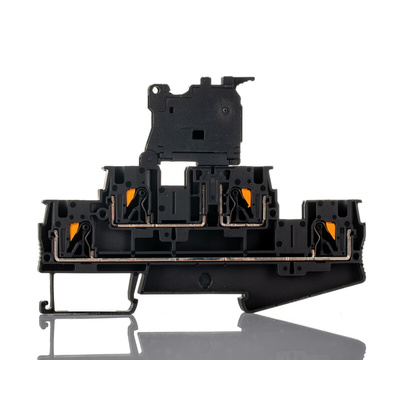

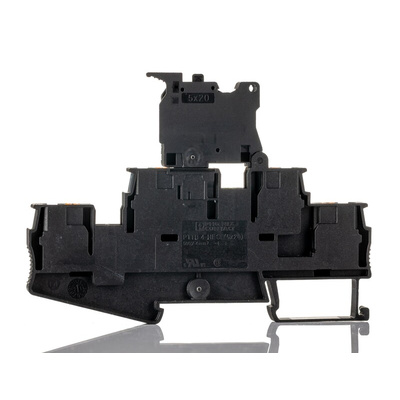

Phoenix Contact DIN Rail Terminal Block, 4 Way, Push-In Connection - PTTB 4-HESI (5X20) - 3211886

Build an organised electrical system with this neat and tidy terminal block from Phoenix Contact. It's a versatile piece of kit that takes four wires sized 0.2 to 4mm² (flexible) or 6mm² (solid). Integrated labelling areas on every terminal point mean keeping track of your assembly is a breeze.
The unit's made to a compact design, with a length of just 102.9mm, to save space in your cabinet. It comes in tough and durable polyamide housing that stands up to impact and high temperatures to give you a long service life. It clips quickly and easily onto a standard DIN rail, so you won't need to waste any valuable time finding tools for installation. This versatile component will help you build systems in settings such as power distribution networks, factories and laboratories.

Features & Benefits

• Push-in connectors to make quick and easy electrical connections without tools
• Polyamide construction combines electrical insulation with strength and temperature resistance
• Double-function shaft includes a testing facility for easy system monitoring
• Additional test connection makes analysis a breeze

PTTB / PTTBS Double Level Terminal Blocks

Datasheet

Line Drawing - 3211886
