S30B-3011CA, Sick S300 Advanced Series Laser Scanner Scanner, 30m Max Range, Лазерный сканер

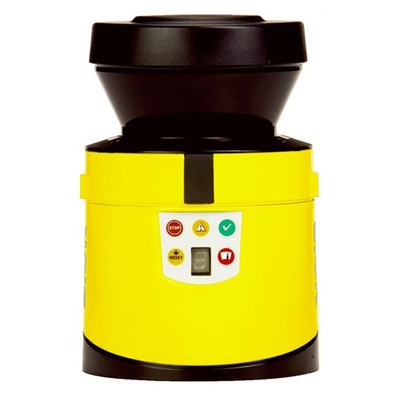

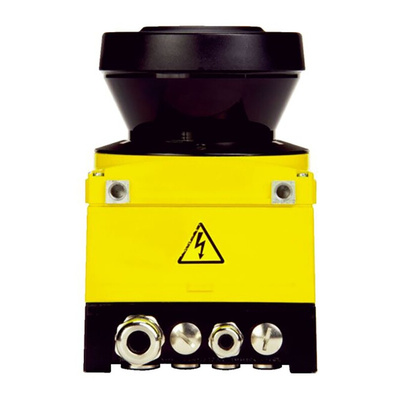

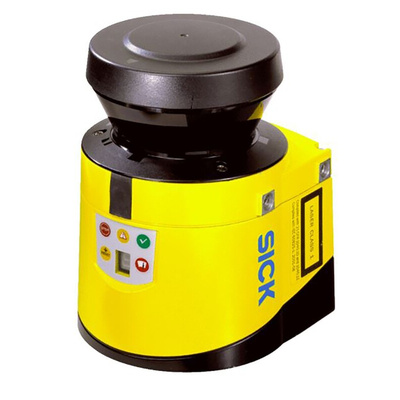

S300 Advanced Safety Laser Scanner

Four protection and four warning fields are freely programmable using the software supplied with the device. This allows each laser scanner to be set up according to the unique requirements of each installation.

Features & Benefits

Simultaneous monitoring of 2 protection fields possible
Plug and play for device exchange
Short response time (80ms minimum)
270° Scanning window
3 m radius for the safety field
8 m warning field (at 15% refelctivity)
2 OSSD safety outputs, 1 warning field output, 1 diagnostic output
2 Control inputs, 1 reset input, 1 EDM input
IP65

Applications:

Typical applications include: Robot Cells; Tube bending machines; Automotive Industry; Collision avoidance; mobile applications (AGV); Area protection; Internal space protection (large presses) and the replacement of safety mats.

Laser Scanner

Datasheet
