Kern OBE 103 Microscope, 4X Magnification, Микроскоп

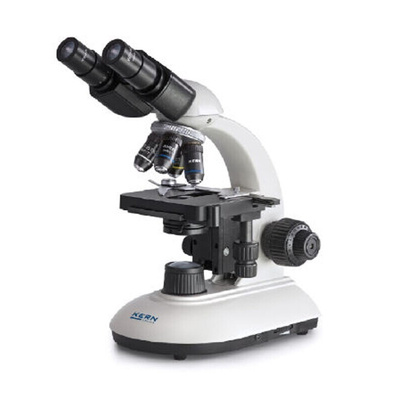

Kern OBE Series Compound Microscope

The OBE Series of Digital Compound Microscope from Kern. Designed to be easy to use, making it ideal for use in schools or laboratories.
Featuring an adjustable field diaphragm and height adjustable Abbe condenser with adjustable aperture diaphragm. Also a dimmable, strong 3 W LED light source. The OBE range of Microscopes produce impressive images in both light and dark field.
Another central feature of this robust digital microscope is the stable mechanism, offering precise adjustment.
Series includes:
OBE 101 (136-3478)
OBE 103 (136-3480)
OBE 104 (136-3482)
OBE 111 (899-7996)
OBE 112 (899-7999)

Typical Applications

Training, haematology, sediment investigation, doctor's surgeries

Applications/Samples

Translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/parasites)

Features and Benefits

• Equipped with dioptre adjustment, wide field eyepieces and achromatic objectives
• Large fully fledged stage
• Available with Monocular or Binocular tube types
• 230 V - 240 V
• Finite optical system (DIN)
• 4-fold lens revolving unit
• 360° rotatable
• Overall dimensions W´D´H: 320 x 180 x 365 mm
• Net Weight: 4.5 kg
