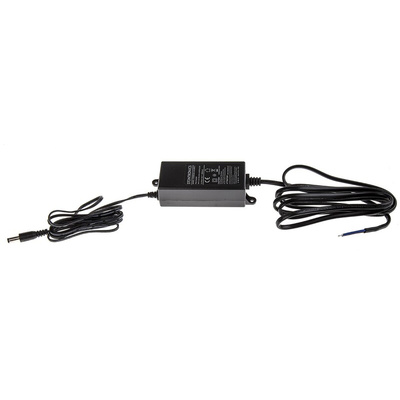

RS PRO 24W Plug-In AC/DC Adapter 12V dc Output, 2A Output

RS PRO 24 W Plug In Power Supply 12 V DC, 2 A, Level VI Efficiency, 1 Output Power Adapter, Fixed Bare End

Use this 24 W plug-in power supply from RS PRO to charge DC-compatible electronic devices via your AC mains supply. It's found in a wide range of commercial and residential settings, from offices to living rooms.

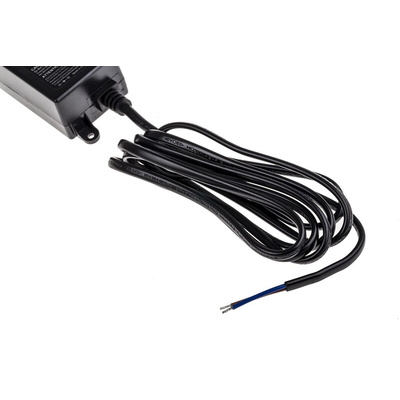

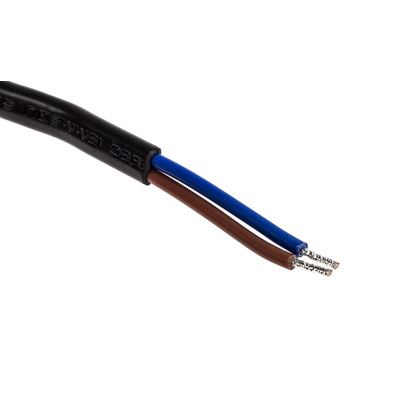

The fixed bare end of this power adapter gives you the freedom to fit it with the plug best suited to your needs. For user safety and to prevent damage to connected equipment, it comes with built-in protection against overvoltage and short-circuiting.


This component has an Energy Efficiency Level VI rating for low power consumption, so it allows you to reduce your carbon footprint. It's ideal for charging portable devices such as mobile phones and tablets.

Features and Benefits

• Input voltage of 100 to 240 V AC


• Input frequency range of 47 to 63 Hz


• Output voltage of 12 V DC


• Output voltage adjustment range of 11.4 to 12.6 V DC


• Single output


• Output current of 2 A


• Fixed AC mains lead input connector

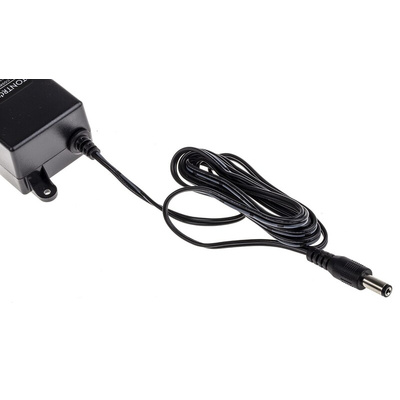

• 2.1 x 5.5 x 12 mm centre positive output


• Dimensions of 95 (length) x 43 (width) x 30.6 mm (depth)


• Temperature range of -20°C to +80°C


• Ripple and noise of 200 mV


• Line and load regulation of ±1%


• Maximum input current of 500 mA


• Complies with CE, RN 55022, EN 60950-1, EN 61000-3-2 and EN 61000-4-2 to EN 61000-4-6
