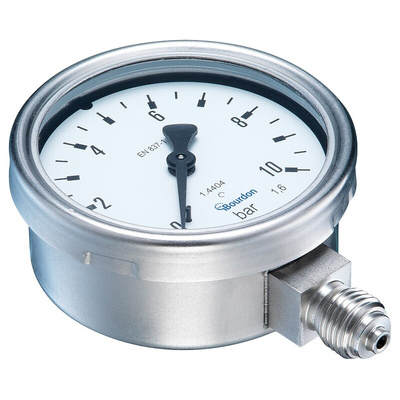

Bourdon G 1/4 Bottom Entry Pressure Gauge 0bar, MEX3D20B59, Манометр

Baumer Industrial Pressure Gauges - Class 1.6

Stainless steel accuracy class 1.6 industrial pressure gauges with a black plastic pointer and easy to read white dial face with black lettering.

Features and benefits

• Suitable for corrosive gases and liquids
• EN 837-1 Class 1.6
• IP 65
• Stainless steel wetted parts
• Fully welded process connection
• 63 mm Nominal size

Applications

• Food and beverage
• Laboratory and medical
• Oil gas / chemical
• Water and waste water
• Energy
• Transportation and logistics
• Machinery

Analogue Pressure Gauges

This range of Bourdon tube pressure gauges has stainless steel cases, copper alloy movement, non-splintering clear PMMA plastic windows and the gauges are intended for use in adverse service conditions where pulsation or vibration exists. Their operating temperature range is -20°C to +60°C. They are suitable for gaseous or liquid media that will not obstruct the pressure system or attack copper alloy parts. Accuracy class is DIN 16 005. Scales are in both bar and psi. All gauges have maximum continuous pressure of full scale and maximum over pressure of 1.3 x full scale.

Datasheet
