RS PRO 3P Pole Panel Mount Isolator Switch - 32A Maximum Current

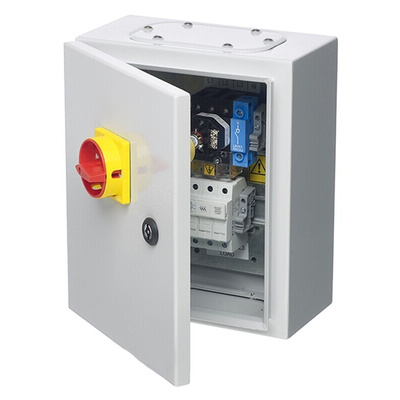

RS PRO 3P+N Enclosed Door Interlocked Fused Switch (32A)

A robust Steel cabinet with an interlocking fused switch for use with low voltage switchgear applications including power distribution, load isolation and motor start up and stop.
Constructed from epoxy coated Steel for a hardwearing lockable cabinet that can take occasional damage and impact. The switch handle is constructed from corrosion resistant plastic and can be padlocked avoiding accidental or unauthorised use.
Easily mountable via 4 x 8.5mm screw holes and fitted with 10 x 38mm fuse holders for a strong, high quality fused cabinet.

Features and Benefits

• 3P+N interlocked fused switch


• Voltage rating of 690V


• Maximum current of 32A


• Easy access and lockable


• Padlockable switch handle


• Epoxy powder coated Steel


• Fitted with 10 x 38 mm fuse holders


• Dimensions of 300 x 250 x 194mm

Load Break Switch: CB, CE, SEMKO, IEC EN 60947-3
Fuse Holder: CE, TUV, EN60269-1, HD60269-2

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
