Pico Technology Differential Oscilloscope Kit

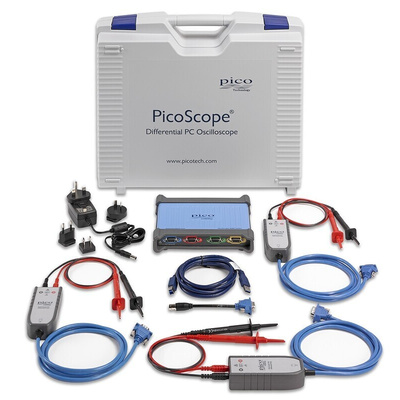

The Pico Technology PICOSCOPE 4444 1000 V CAT III Kit is a 20Mhz high-resolution differential oscilloscope with three passive differential voltage probes and one TA271 single-ended D9-BNC adaptor. Its intelligent probe interface automatically configures the PicoScope display to probes. The four D9 inputs allow you to make true differential measurements. The 12bit resolution of the PicoScope 4444 offers 16 times as much vertical detail.
The PicoScope 4444 uses specially designed passive voltage probes that have smaller and lighter (or no) interface boxes. The PicoScope 4444 has high-resolution and deep memory and lets you make multiple differential measurements at the same time, while never occupying more than one power socket. Its intelligent probe interface automatically configures the PicoScope display to your probes, so you don’t have to.

Features and Benefits

It has 4 channel device
waveform buffer and navigator Hardware acceleration engine (HAL3)
Deep memory is 256 MS
Up to 400 MS/s sampling rate
High common-mode rejection ratio
Flexible 12 and 14bit resolution
Balanced high-impedance inputs for a low circuit load
Low voltage probe for millivolts to 50V
True differential measurements in high-resolution
FFT spectrum analyser
Intelligent probe interface
High-resolution offers 64x more detail

Applications

Non-ground referenced measurements
Safe probing of single phase and 3-phase voltages and currents
Measuring power drawn by mobile and IoT devices
Hybrid and electric vehicle design
Motor drives and inverters

Certifications

EN 61010-1:2010
EN 61326-1:2013
FCC Part 15 Subpart B
