Pico Technology TA326 Current Probe, AC, Rogowski Coil Adapter, 3kA ac AC Max, Адаптер

1365323
Номер производителя: TA326Производитель: Pico Technology
Цена за шт.
97650.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

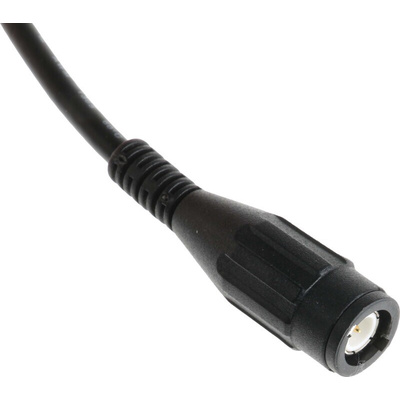

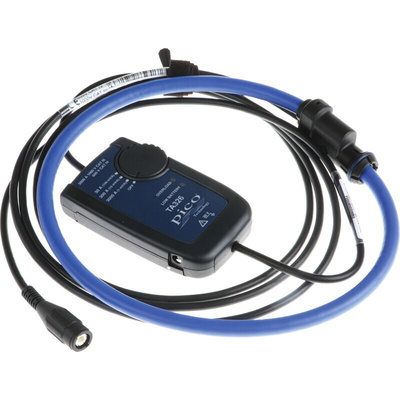

Pico TA326 30/300/3000A AC Flex Current Probe with BNC Connector

The TA326 is an AC current probe utilising the Rogowski coil principle, used to measure AC current up to 3000 A when used with oscilloscopes, recorders or data loggers. The flexible probe allows current measurements on hard-to-reach conductors.
Rogowski coil technology has a couple of advantages over CT (current transformer) technology: when measuring multiple phases, the phase difference is small and predictable for higher frequency harmonic analysis applications; also, Rogowski coils do not have magnetic materials to saturate and so have excellent linearity.

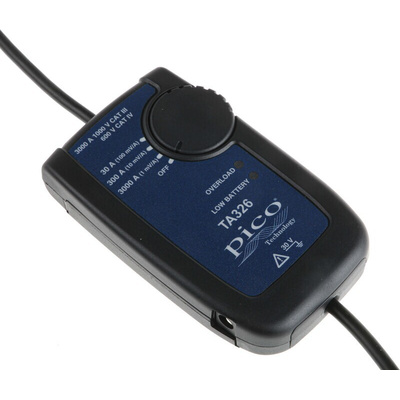

The probe has three user selectable ranges; 30 A, 300 A and 3000 A.​The probes provide a 3 V full-scale AC output proportional to the current being measured with three selectable ranges.

Features and Benefits

1000 V RMS, Category III, 600 V RMS, Category IV
Pollution Degree 2 (probe and integrator)
30 V maximum between output and ground
RoHS and WEEE compliant
Rated for continuous use

Pico PC Based Instruments

Техническая спецификация
pdfTA325/TA326 User Guide
