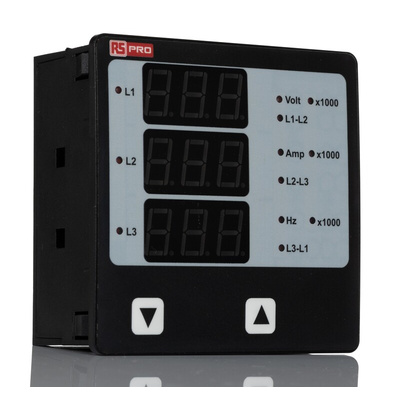

RS PRO LED Digital Panel Multi-Function Meter for Current, Frequency, On Hour, RPM, Run Hour, Voltage, 92mm x 92mm, Многофункциональный измеритель

RS PRO LED Digital Panel Multi-Function Meter for Current, Frequency, On Hour, RPM, Run Hour, Voltage, 92 mm x 92 mm

Measure and monitor key electrical outputs with this RS PRO digital panel meter. It's designed to replace older analogue models with a more user-friendly, touch-screen alternative. You'll typically find this multi-function device in commercial and industrial premises from production lines to power plants and electricity exchanges.
Whether for AC voltage, current or frequency, you can programme this device to display key metrics on the LED screen. It's commonly used in distribution panels, electrical load monitoring equipment and test benches.

Features and Benefits

• International Electrotechnical Commission (IEC) approvals include IEC 60529, IEC 61010-1:2001, IEC 61326-1:2005
• Cutout height of 92 mm
• Cutout width of 92 mm
• Depth of 55 mm (without option)
• LED display type
• Minimum temperature of -10°C
• Maximum temperature of +55°C
• Measurement range of 5 A (Current), 500 V (AC RMS – root mean square – Input Voltage), 500 V (Secondary Input Voltage), 65 Hz (Frequency), 799 kV (Primary Input Voltage)
• Digital meter type
• Minimum measurement of 1 A (Current), 100 V (AC RMS Input), 100 V (Primary), 100 V (Secondary), 45 Hz (Frequency)
• Three digits
• Properties measured include current, frequency, on hour, RPM (revolutions per minute), run hour, voltage
