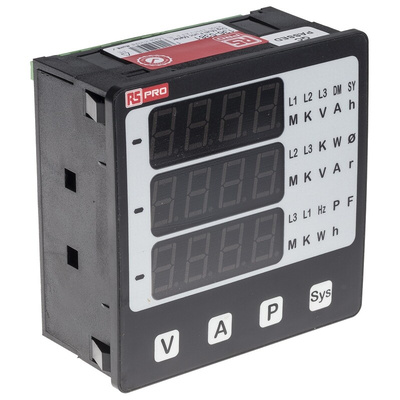

RS PRO LED Digital Panel Multi-Function Meter, 92mm x 92mm, Многофункциональный измеритель

4 Digit, 3 Line Digital Multi-function Meters

RS Pro digital panel meters measure important electrical parameters in 3 phase 4-wire and 3 phase three wire network and replaces the need for multiple analogue meters. It measures electrical parameters such as AC voltage, AC current, Frequency, Active, Reactive and more.

Features and Benefits

3 line, 4-digit ultra-bright LED display (up to 9999)
Fast and easy installation on panel with self-clicking
True RMS measurement
Limit switch (optional)
On-site programmable CT/PT ratios
User selectable CT secondary 1A/5A
User selectable PT secondary from 100 VLL to 500 VLL
User selectable 3 ph 3 wire/3 ph 4 wire/single phase network
2 Auxiliary power supply available 40 V-300 V ac/dc
Storage of MIN/MAX values
Measurement and display of RPM, run hours, on hours, no. of interruption

RS Pro

Datasheet
