RS PRO LED Digital Panel Multi-Function Meter, 92mm x 92mm, Многофункциональный измеритель

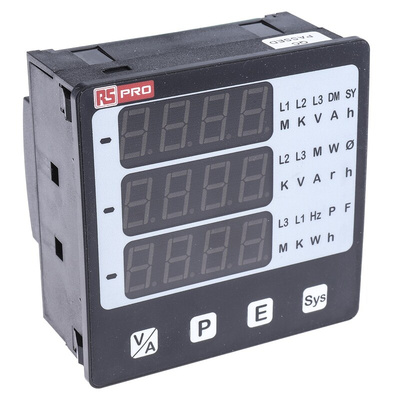

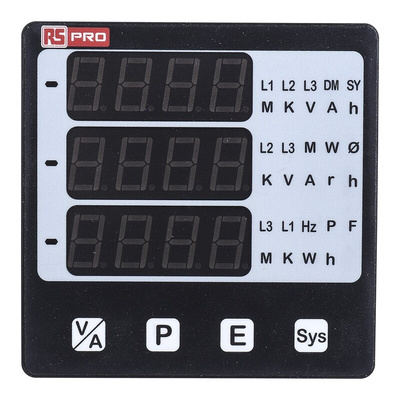

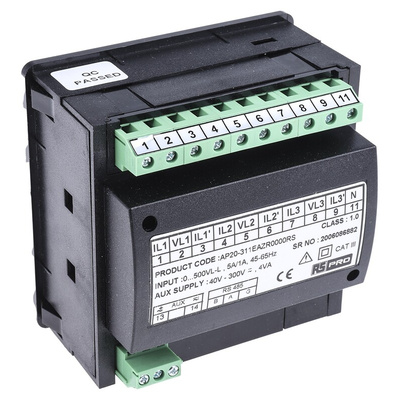

RS PRO LED Digital Panel Multi-Function Meter 92 mm x 92 mm

This LED digital panel multi-function meter from the RS PRO range measures the electrical performance of equipment used in a range of manufacturing and workshop settings.

You can utilise this product to measure electrical parameters such as AC voltage, AC current, frequency, active, reactive and more. The meter can monitor the performance of a process or instrument, shown on the four-digit ultra-bright LED display. There's also the option to personalise the display including text and colour to make information easy to read, wherever you are.

It measures parameters in three-phase, four-wire and three-phase, three-wire networks so it can be used in a range of scenarios. That also means you no longer have to rely on multiple analogue meters for accurate readings.

The product offers protection from dust and water by conforming to IP50 (front face) and IP20 (for back) and IP65 (front with seal).

Features and Benefits

• Digital panel multi-function meter
• LED display
• Properties measured include AC current, AC voltage, active, apparent power, frequency, import-export energy, reactive
• Measurement range 0.5 (lag power factor), 0.5 (lead power factor), 1 (normal power factor), 1 to 5 (current) A, 290 (phase to neutral) V AC, 45 to 65 (frequency) Hz, 500 (line to line), V AC
• Cutout height and width of 92 mm
• Minimum temperature of -20°C
• Maximum temperature of +70°C
• Digital meter type
• Four digits
• Depth of 55 mm
• Alpha 20 series

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
