Molex 1.27 mm Slim-Grid Board to Board Connectors
Slim-Grid board to board connectors with a 1.27 x 1.27 mm grid pattern for design flexibility in high density board to board applications. These Slim-Grid board to board header and socket connectors feature single-sided polarization slots and tabs to prevent incorrect orientation and mismating. Locking windows on the header and locking ramps on the socket ensure a secure and robust connection is made when the connectors are mated. The shrouded right angle header connectors feature PCB locating pegs for accurate placement on the PCB and the unshrouded headers feature pick and place caps.
Features and Benefits
• High density 1.27 x 1.27 mm grid design
• Polarization features to prevent mismating
• Locking windows and ramps for secure mating connection
• PCB locating pegs for accurate PCB placement

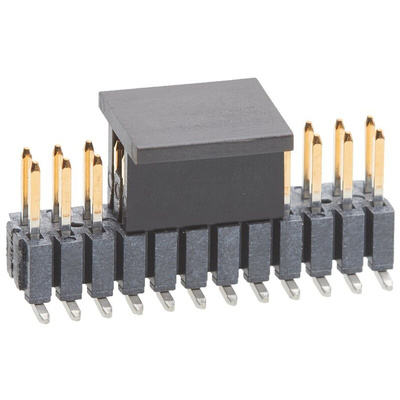

• Pick and place cap (unshrouded header)
Product Application Information
These 1.27 mm Slim-Grid connectors are ideal for use in high density board to board applications in the automotive industrial and consumer industries. Applications include energy efficient appliances, white goods, hubs, routers, switches, car audio and navigation systems, control boards, lighting luminaries, smartphones and other portable electronic devices.
1.27mm Molex Board-to-board
Техническая спецификация1.27mm Slim-Grid SMT Header - Line Drawing
Slim-Grid 1.27mm Board to Board Connectors - Brochure
Part Details
Product Specification
Brochure - 87933-2415
