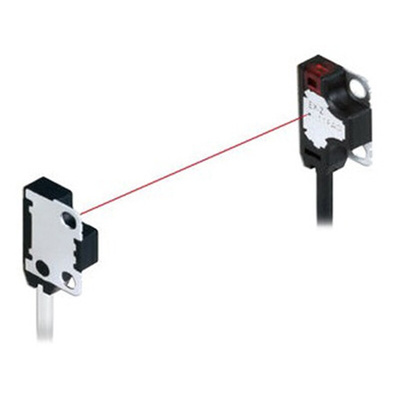

EX-Z13A-P, Panasonic Through Beam Photoelectric Sensor, Block Sensor, 500 mm Detection Range, Фотоэлектрический датчик

EX-Z Series Ultra-minute Photoelectric Sensor

Panasonic EX-Z series ultra-minute photoelectric sensors with built in amplifier. The compact size allows installation of sensors in a narrow space where only a conventional fiber sensor head could be installed before. The built-in amplifier also saves on installation space.

Sensing Capability

A slit is provided on the front side of the main sensor body allowing the sensor to detect a 0.3 mm diameter object without using an optional slit. High-brightness 4-element red LED provides strong light emission over a long period of time. With the spotlight clearly visible, the sensing position can be easily confirmed.

Features and Benefits

Front sensing or side sensing type
IP67 rated
3 sensing range models: 50mm, 200mm or 500mm

Note

Supplied as an Emitter and Reciever pair. The model No. with “E” shown on the label affixed to the sensor is the emitter, “D” shown on the label is the receiver.
