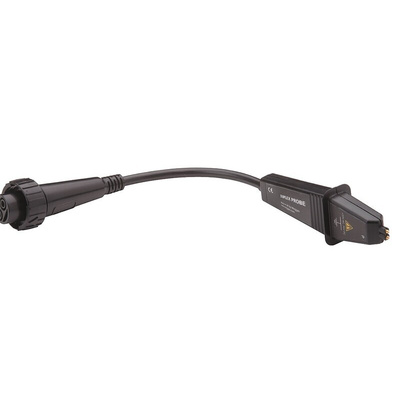

Megger 1006-450 Duplex Hand Spike, For Use With DLRO10HD Digital Low Resistance Ohm Meter

Megger Electrical Test and Measurement Accessory, Duplex Hand Spike, CAT III 600V Safety Category - DLRO Series - 1006-450

When you need a reliable connection during continuity testing, turn to this electrical test and measurement accessory from Megger. It's a duplex hand spike probe with durable hardened tips at one end and a connector socket at the other. With a connector-to-probe tip resistance of 14mΩ, it's the ideal fit for the Megger DLRO10HD digital low resistance ohmmeter (910-8695), so you can quickly detect faults and take measurements. The accessory's probe tips are replaceable too, for a longer product life.

Features & Benefits

• Stainless steel spring-loaded tips exert 1.3kg of force to get a solid grip on the connector
• Gold plating on the probe's tips for high conductivity and low-resistance contact
• Maximum current rating of 10A ensures it stands up to low-voltage and higher-voltage circuits
• Product details marked clearly on the probe for easy identification

Applications

• Low-voltage electrical installations
• Automated assembly lines
• Pharmaceutical laboratories

What spacing is there between the two tips?

There's a short distance of 6mm between each probe tip to ensure compatibility with most duplex connector test leads.
