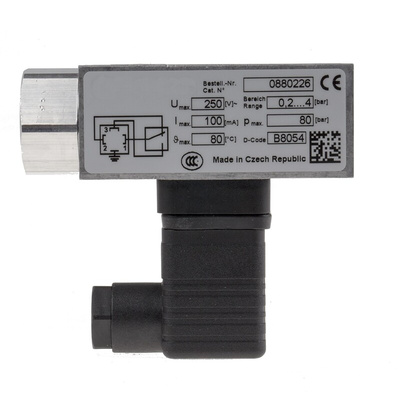

RS PRO Pressure Switch, NPT 1/4 0.2bar to 4 bar

RS PRO Pressure Switch, NPT 1/4 0.2 bar to 4 bar

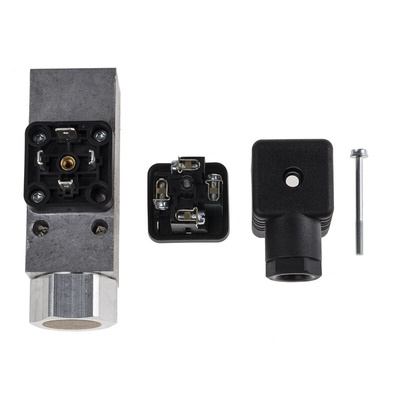

Need a way to detect whether the pressure in your system is above or below a certain value? Use this pressure switch from RS PRO. The switching pressure is easy to adjust using the screw on the rear. For versatility, you can use the supplied DIN connector to set up a normally open or normally closed electrical connection.
This switch is suitable for use with neutral, gaseous and liquid fluids, making it suitable for a range of applications. For safety, the switch is protected against overpressure thanks to the built-in mechanical stop. The switch has an Ingress Protection (IP) rating of IP65, meaning that it's protected against condensation and low-pressure water jets. This makes it a good choice for use outdoors or in harsh indoor environments.

Features and Benefits

• NPT (National Pipe Thread) 1/4 connection
• Connection thread size of 1/4 in
• IP65 rating
• Minimum operating pressure of 0.2 bar
• Maximum operating pressure of 4 bar
• Minimum pressure setting of 0.2 bar
• Maximum pressure setting of 4 bar
• Minimum operating temperature of -10°C
• Maximum operating temperature of +85°C
• Electro-mechanical pressure type
• Suitable for use with compressed air, gas, pneumatic

Pneumatic Pressure Switch 18D
