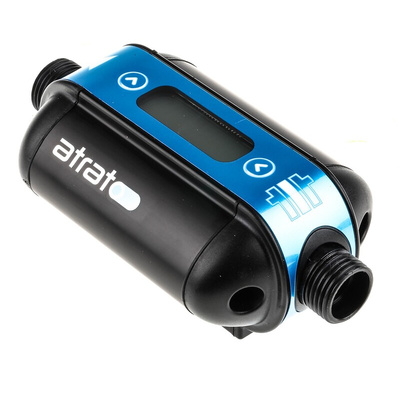

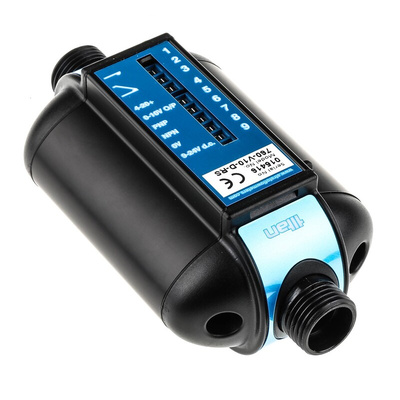

760-V10-D-RS, Atrato Atrato Series Ultrasonic Flow Meter, 0.1 L/min → 20 L/min

Atrato Flow Meter

The Atrato ultrasonic flow meter measures the liquid flow rate of 0.1L/min to 20L/min. It is designed with a clean bore structure that makes it ideal for low flow applications such as laminar and turbulent. The flow meter uses patented 'time of flight' technology that provides excellent accuracy along with monitoring the flow over a range of 200:1. This device can be easily connected to a computer through a USB port to monitor the rate and the total. It also helps in the modification of certain operating parameters like pulse resolution and units. This flow meter delivers unprecedented performance and accuracy across a broad dynamic range.

Features and Benefits

Pipe diameter range is 1/2 in
Connection type is 1/2 BSP male
Maximum operating pressure is 10bar

High reliability
No moving parts
Quick response
Through bore design
Easy to use
End fittings: 1/2in BSP PEEK 10bar
It is made of PEEK / 316 St body material
Display and analogue output

Applications

Industrial use
Laboratory tests
Drink dispensing
Cooling equipment
OEM
Semiconductor plant
Active flow alarms
