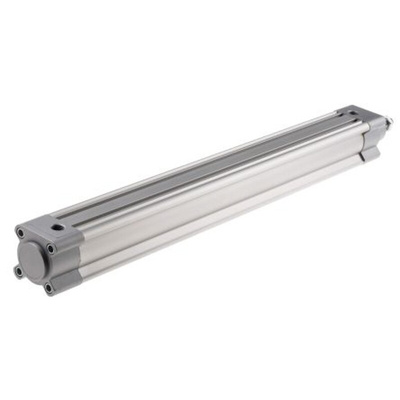

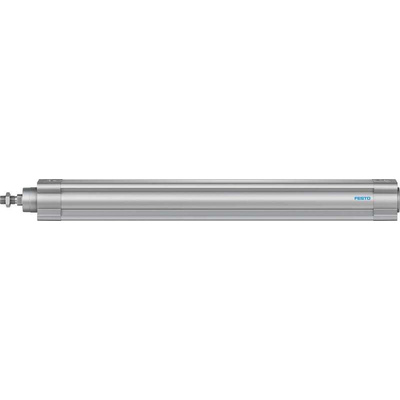

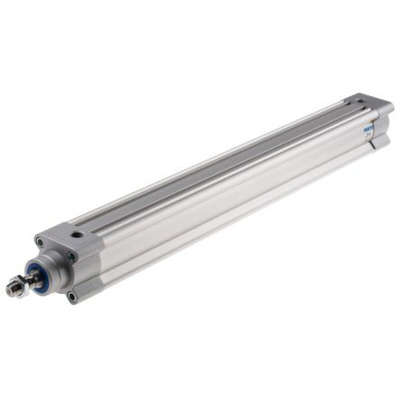

DSBC-40-400-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1376666, 40mm Bore, 400mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

1366491
Номер производителя: DSBC-40-400-PPVA-N3Производитель: Festo
Цена за шт.
65032.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

DSBC Series Profile Cylinders - Adjustable Pneumatic Cushioning

Festo DSBC series pneumatic cylinders with adjustable pneumatic cushioning at both ends of the actuator barrel. Featuring a high-alloy steel piston rod provides excellent running performance, low overall weight and long service life. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod in a linear motion. Magnetic piston rods allow contactless position detection via a proximity sensor mounted in slots along the cylinder body.

Adjustable Pneumatic Cushioning

The DSBC PPV type adjustable cushioning pneumatic cylinders are equipped with a special cushioning piston as an extension to the main piston. This pneumatic cushioning builds up an air cushion to absorb energy in the end positions, building up and exhausting air in a targeted fashion.. This energy absorbing method makes these cylinders ideal for medium to heavy loads and high speed applications.

Features and Benefits

Corresponds to ISO 15552 standard
Slots for flush mounting proximity sensors
Low friction design allowing for continuous operation
Adjustable end cushioning helping to reduce noise and vibration
High-alloy steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications
Double acting operation

How do I mount the pneumatic actuator?

The DSBC series pneumatic round actuators conform to ISO 15552 standards allowing them to be mounted in any position to suit the required application. The ISO 15552 standard establishes metric mounting dimensions for cylinders providing interchangeability of commonly used hydraulic and pneumatic cylinders. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.

Festo Pneumatic Piston Rod Cylinder, 0.7J Impact Energy, 400mm Stroke - DSBC-40-400-PPVA-N3

Get your machinery on the move with this pneumatic piston rod cylinder from Festo. Its double-acting design means it delivers powerful forces in both directions, making it suitable for two-step actions such as pushing and pulling. This small but mighty unit handles pressures of up to 12 bar, so it's a versatile option. Reliable PU seals keep air in and debris out to minimise the risk of damage from corrosion and ensure your system runs like a well-oiled machine.

Features & Benefits

• Performs reliably even in demanding temperatures between -20°C and +80°C
• Standard G1/4 connections for wide compatibility with your existing kit
• Built-in cushioning at both ends absorbs impact energy to minimise wear and tear

Applications

• Food and drinks industry
• Agricultural machinery
• Manufacturing facilities

How do I mount this cylinder in my system?

You can secure this unit to the rest of your system by attaching it to a swivel flange (121-5851), trunnion flange (203-0934) or foot mounting (121-4376). These screw directly onto support surfaces to give your cylinder the stability needed to position or clamp heavy items.

Техническая спецификация
pdfDatasheet
pdfFesto Pneumatic Cylinders Operating Manual
pdfDSBC-40-400-PPVA-N3 Specification Sheet
pdfBrochure - Simply Part of The Solution
Вес:
740гр
Вес интервала хода:
37 g при 10 мм Stroke
Высота:
54мм
Давление - максимальное рабочее:
12 бар
Действие:
Double
Длина:
161.9мм
Испытательный вес:
740 g при 0 мм Stroke
Модель р:
1376666
Отверстие:
40мм
Пневматическое соединение:
G 1/4
Производитель - серия:
DSBC
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-20°C
Размеры:
161.9 x 54 x 54мм
Род резьбы поршневого стержня:
Male
Стандарт ISO:
15552
Стандарт VDMA:
24562
Тип демпфирования:
Air
Ход:
400мм
Ширина:
54мм
