DSBC-63-400-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1383588, 63mm Bore, 400mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, Threaded Connection, 63mm Bore - DSBC-63-400-PPVA-N3

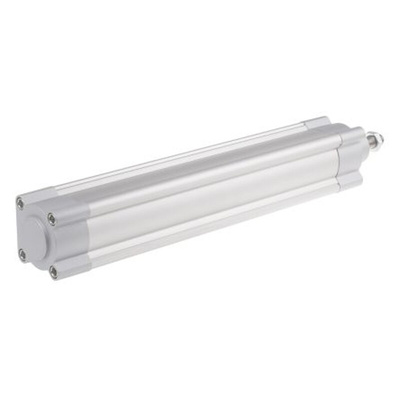

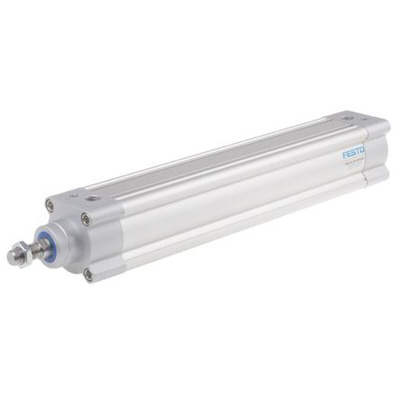

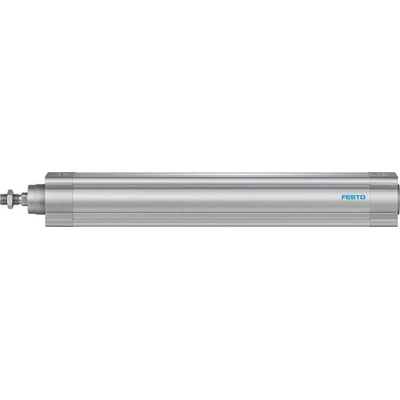

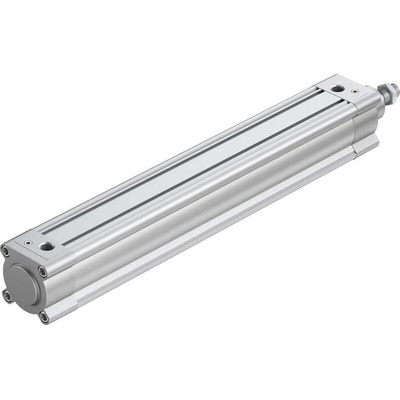

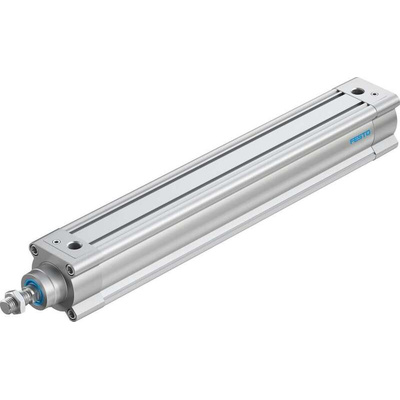

Turn the force of compressed air into linear motion using this pneumatic piston rod cylinder from Festo. It's a double-acting type, which means it has a port at each end, giving compressed air free rein to move the rod back and forth. A robust air cushion softens the blow from the piston to keep it from wearing out. For an even smoother ride, you can lubricate the cylinder to cut down on friction. A broad operating temperature range between -20°C and +80°C means this is a robust option that can stand the heat in harsh environments.

Features & Benefits

• Can be assembled in any position for flexibility
• Threaded pneumatic connection simplifies assembly
• Die-cast coated aluminium housing resists mechanical wear, so withstands harsh industrial conditions
• Cushioning is adjustable to fit different applications
• TPE-U(PU) seals help prevent air leakage

Applications

• Irrigation equipment
• Safety devices
• Construction industry
• HVAC systems

What's this pneumatic piston rod cylinder made from?

The barrel of this cylinder is made from rugged wrought aluminium alloy that stands up to hard impacts and corrosion. For added durability, the piston rod is manufactured from high alloy steel that's resistant to moisture damage.
