Festo Solenoid Valve VZWD-L-M22C-M-G18-10-V-1P4-50, 2 port(s) , NC, 24 V dc, 1/8in, Клапан

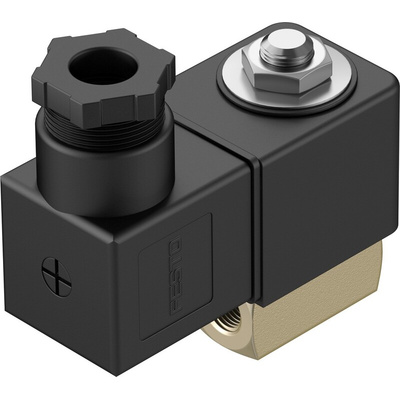

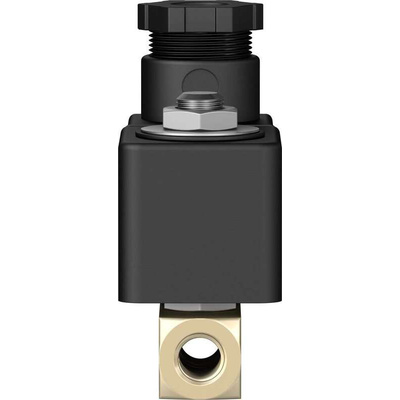

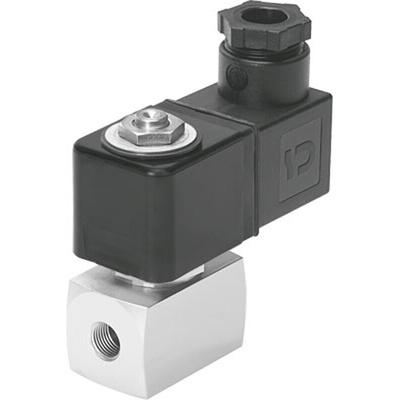

Festo Directly Actuated Solenoid Valve, 2/2, 24V DC - VZWD-L-M22C-M-G18-10-V-1P4-50

Regulate the flow of substances in your industrial systems with this Festo solenoid valve. It can be used for both standard compressed air and inert gas, making it a versatile choice. You can also use it to move fluids including mineral oil, water and other neutral liquids. Electrical actuation causes the pilot mechanism to open, allowing air to pass through the dual ports. Its maximum working pressure of 50 bar means you can safely use this solenoid valve in demanding industrial installations.

• Ambient temperature range of -10°C to +35°C for use in commercial and industrial environments
• Light 300g weight for easy installation
• 60l/min flow rate for effective use in low-flow installations
• IP65 (ingress protection) rating means it's resistant to dust and water that may cause corrosion

Applications

• Cleaning equipment
• Vacuum systems
• Industrial tanks
• Water treatment facilities

Why is this solenoid valve encased in brass housing material?

This valve's brass housing is highly resistant to corrosion, even when it's installed in very damp environments. It also has temperature regulating properties and can withstand hot liquids without being damaged.

Datasheet

VZWD-L-M22C-M-G18-10-V-1P4-50 Specification Sheet

Instruction Sheet - Solenoid Valve
