MFH-5-1/4-B, Festo Pneumatic Solenoid Valve - Electrical G 1/4 MFH Series, 15901, Клапан

FESTO Tiger Classic Solenoid Valves - Pneumatic Control Valve

Introducing our Tiger Classic Valves. These pneumatic valves are suitable for mounting onto a PAL manifold strip and PRS manifold block with hollow bolts. The manifold strip and manifold block feature 2-6 pneumatic valve positions. Vacant positions have the option to be sealed on PAL manifold strips through the use of blanking caps or blanking plates.

Features & Benefits

• These solenoid valves are sturdy and reliable
• All dependant on the choice of connection, normally-open or normally-closed function
• Separate pressure levels can be provided to individual control valves. This is through the use of hollow bolts with threaded connections
• Very durable poppet valve concept for all 3/2 and 5/2-way valves
• RoHS compliant (Restriction of Hazardous Substances)
• F Solenoid coil with electrical actuation
• Variation of high flow rates of up to 7500 l/min
• Pipe (hose) thread available in sizes G1/8 and G1/4
• Proven assembly on PAL or PRS manifold strips with hollow bolts
• Optimised response times with patented U-ring and servo control
• With internal or external pilot air

Applications

• PAL Manifold Strips
• PRS Manifold Blocks

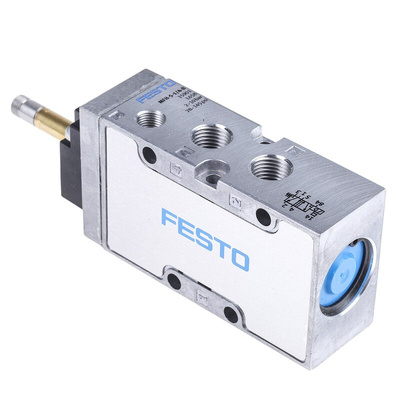

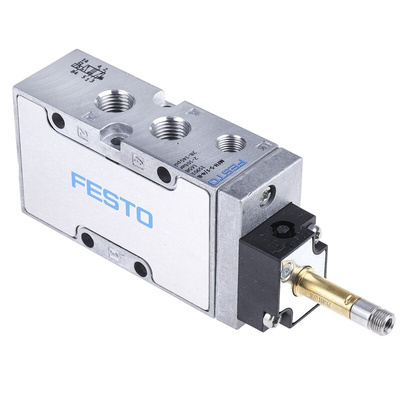

FESTO MFH-5-1/4-B Pneumatic Control Valve

• Storage temperature -40 to 60°C
• Ambient temperature -5 to 40°C
• Max. switching frequency of 3 Hz
• Low corrosion stress CRC classification
• This solenoid valve has an internal pilot air supply
• 5/2 monostable valve function
• Electrical actuation type
• Pneumatic connection ports 1-5 are G1/4
• 2-10 bar operating pressure
• Switching time off is 38 ms and switching time on is 12 ms
• Standard nominal slow rate is 1,3000 l/min

Festo Tiger Classic

MFH-5-1/4-B Specification Sheet
