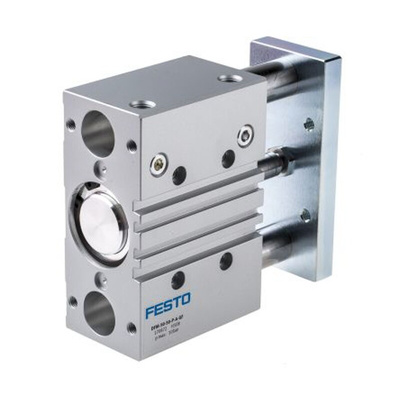

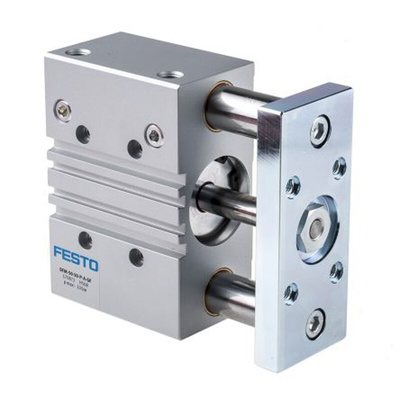

DFM-63-25-P-A-GF, Festo Pneumatic Guided Cylinder - 170878, 63mm Bore, 25mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, 2471g Moving Mass, G1/8 Connection - DFM-63-25-P-A-GF

Want to get everything in the right place? Add this double-acting pneumatic guided cylinder from Festo to your system. The drive and guide units are combined in a single housing to make efficient use of space. As this housing's made from wrought aluminium, it resists the torque and lateral forces at work in demanding setups. The heavy-duty design delivers an advance stroke of 1,870N at 6 bar, so you can be sure it's up to handling tough positioning, clamping and stopping jobs. Combine the cylinder with a proximity sensor from the SDBT or SMT series to integrate it into your automated setup.

Features & Benefits

• Elastic cushioning rings at each end absorb impact to prolong piston life and keep your system running smoothly
• 0.6m/s speed supports precision adjustments
• Safe to use in demanding conditions thanks to a -20°C to +80°C operating temperature range

Applications

• Printing industry
• Packaging facilities
• Electronics manufacture

How do I mount this unit?

You can mount this unit in any direction via the through-holes or with the female threads, giving you flexibility when designing your system.

Datasheet

Festo Pneumatic Cylinders Operating Manual

DFM-63-25-P-A-GF Specification Sheet
