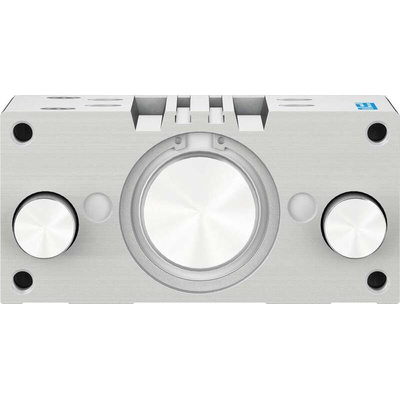

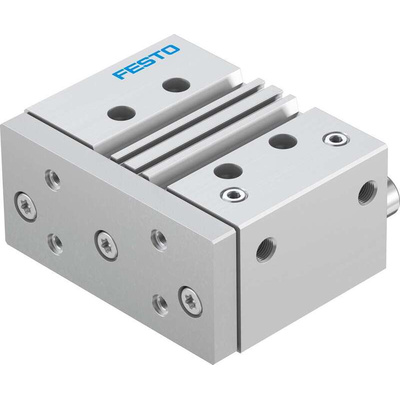

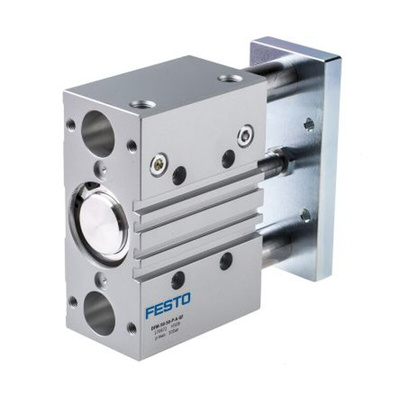

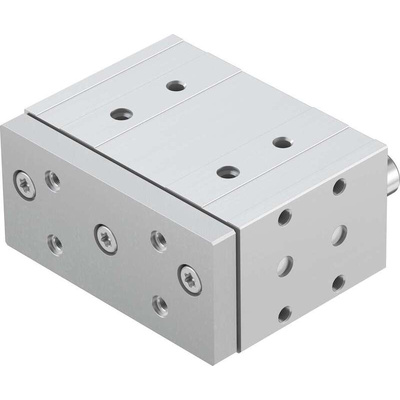

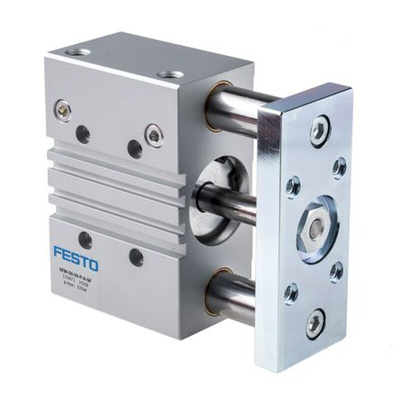

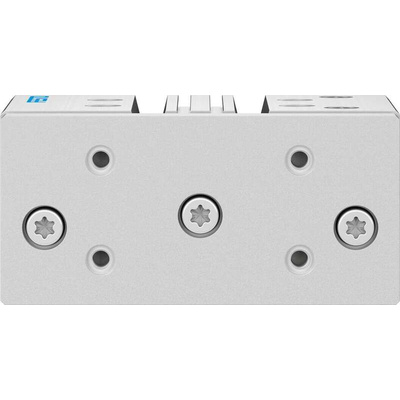

DFM-63-50-P-A-GF, Festo Pneumatic Guided Cylinder - 170879, 63mm Bore, 50mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, G1/4 Port Connection, 5.2Kg Weight - DFM-63-50-P-A-GF

Push your operations to the next level with this pneumatic guided cylinder from Festo. It's a double-acting unit that can be used to move laterally attached factory equipment or objects in two directions. With a bore of 63mm and a stroke of 50mm, it's capable of generating significant amounts of force for clamping, lifting or stopping as required. Flexible elastomer cushioning plates help reduce noise in your workplace and ensure a long service life.

• Supply ports on top and sides for flexible mounting
• Maximum operating pressure of 10 bar for handling heavy loads
• Broad operating temperature range between -20°C and +80°C, so it's a safe choice for use in harsh conditions
• Compact dimensions of 162 (W) x 143 (L) x 78mm (H) for applications where space is tight
• Maintenance-free aluminium construction is highly durable

Applications

• Robotics systems
• Production lines
• Automotive manufacturing

What port connection does this pneumatic guided cylinder have?

It has a standard G1/4 port connection, for wide compatibility with existing equipment.

Does this guide unit also contain the drive?

Yes, it's a combined guide and drive unit in a single housing. This makes it space-efficient and helps you build a streamlined system.
