FBSD-GD-9-5POL, Festo FBSD Plug Connector

Fieldbus Module Adaptor

FBA-1, FBA-2

• Plugs and plug sockets for fieldbus connection
• 136-6739, straight socket Sub-D 9-pin to straight plug M12 5-pin, for CANopen/DeviceNet
• 136-6738, straight socket Sub-D 9-pin to straight plug/socket M12 5-pin, for CANopen/DeviceNet
• 136-6748, straight plug Sub-D 9-pin to straight plug/socket M12 5-pin, for PRPFIBUS/CC-LINK

FBSD

• Plug sockets for fieldbus connection
• Connection cross section: 0.75 mm² to 2.5 mm²
• 136-6557, straight socket M12 5-pin, for FBA-2-M12-5POL
• 136-6740, angled socket 5-pin, screw terminal, for FBA-1-SL-5POL

FBS-SUB

• Fieldbus plug with 9-pin Sub-D connection
• Connection cross section: 0.75 mm²
• 136-6555, straight plug for FBA-2-M12-5POL
• 136-6747, plug for DeviceNet/CANopen
• 136-6746, straight plug for PROFIBUS
• 136-6751, angled plug for CANopen
• 136-6750, plug for PROFIBUS

FBTA

• T-adapter for fieldbus connection on valve terminals
• 136-6551, plug M12 5-pin to 2 x socket M12 5-pin

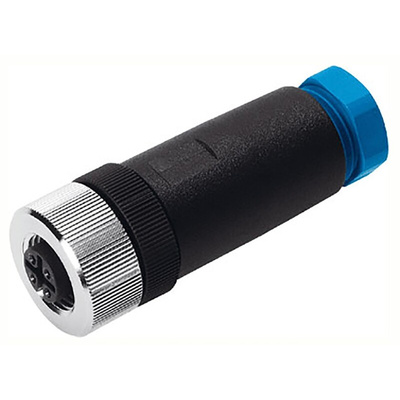

Festo Plug Connector, Fieldbus Connection to Valve Terminals, Straight Socket - FBSD-GD-9-5POL

To configure pneumatic valve accessories for use with Fieldbus technology, choose this plug connector from Festo. It has a 5-pin M12 connection for an easy setup and fast signal transmission. You can assemble it with any length of cable to allow long runs between a component and fieldbus equipment, saving the need for extra wiring and connectors. For an extended service life, the durable unit's protected by reinforced polyamide housing that resists corrosion and abrasive materials.

Features & Benefits

• Nitrile rubber seals resist oils and wear, enhancing the durability of your plant control system
• Gold-over-nickel plating improves connectivity of contacts and resistance to corrosion
• Wide operating temperature range between -40˚C and +85˚C for use in demanding conditions
• Union nut M12 mounting for an extra-secure connection

Applications

• Chemical processing
• Oil and gas refineries
• Factory automation

Can I use this plug connector in damp or dusty environments?

Yes, this component has an IP67 rating, which means it's completely shielded against dust and can be submerged in 1m of water for up to 30 minutes.

How big is this unit?

The terminal has a 0.75mm² cross-section, so is ideal for applications where space is at a premium.
