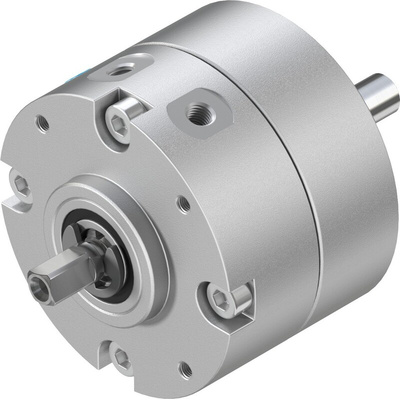

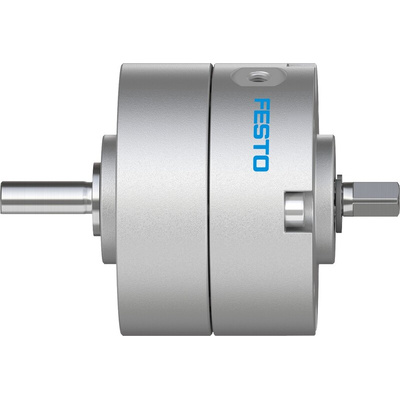

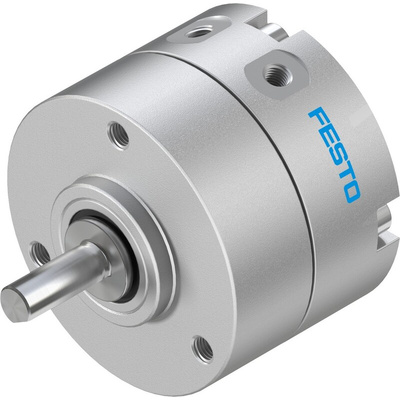

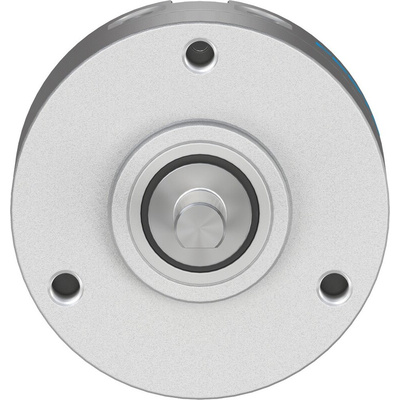

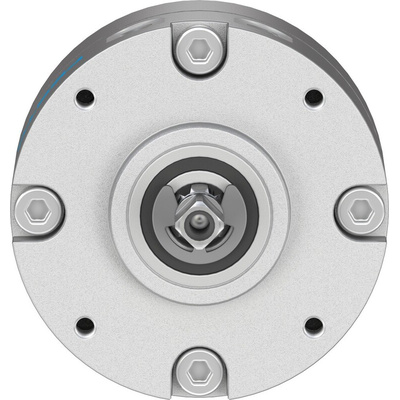

DRVS-6-90-P, Festo DRVS Series 8 bar Double Action Pneumatic Rotary Actuator, 90° Rotary Angle, 6mm Bore

Festo Pneumatic Rotary Actuator, 3.5 to 8 Bar Operating Pressure Range, 0° to 90° Swivel Angle - DRVS-6-90-P

Keep your proximity sensing applications on a roll with this pneumatic rotary actuator from Festo. The double-acting unit uses compressed air at both ends for precision control over shaft rotation and speed. You can adjust the flexible swivel angle between 0° and 90° to suit your specific setup. Thanks to a 6mm bore, this component doesn't hog too much installation space in your system. It's a tough device that delivers glitch-free performance in a wide temperature range between 0°C and +60°C.

Features & Benefits

• Tips the scales at just 38g, so the strain on your system is negligible
• TPE-U(PU) seals keep the unit airtight and stop debris from getting in
• M3 pneumatic connection is widely compatible with standard ports
• Flexible cushioning softens impacts for smooth operation and long-term durability

Applications

• Breweries and bottling plants
• Assembly and packaging lines
• Medical imaging equipment

Can this pneumatic rotary actuator handle heavy-duty environments?

Yes. The drive shaft is made of high-alloy steel and the housing from an aluminium alloy, meaning the unit resists wear and corrosion. This makes it an ideal option for demanding industrial setups and damp or humid environments.
