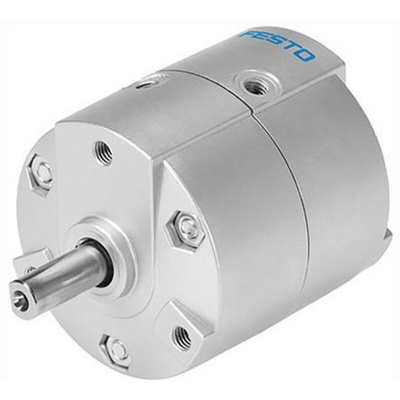

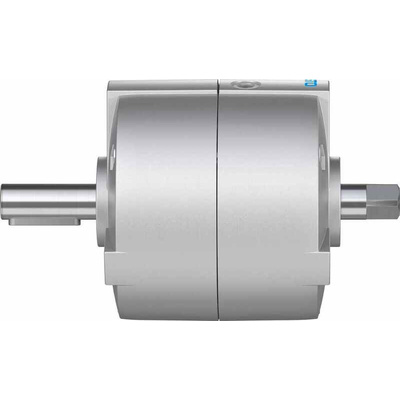

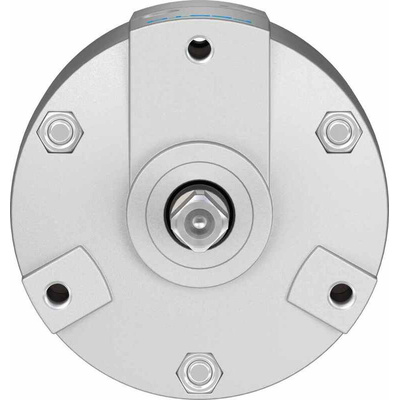

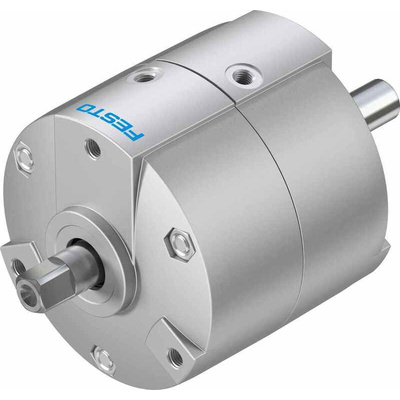

DRVS-25-90-P, Festo DRVS Series 8 bar Double Action Pneumatic Rotary Actuator, 90° Rotary Angle, 25mm Bore

Festo Double-action Pneumatic Rotary Actuator, 25 mm Bore - DRVS series - DRVS-25-90-P

For automating ball valves or plug valves in your automation systems, choose this double-action rotary cane actuator from Festo. It's lightweight and compact, so it's easy to use in modular systems. While the swivel angle is fixed, it can be adjusted using appropriate accessories. You can ensure the unit operates reliably by fixing the end positions with the click of a button. Installation is quick and simple as it requires only one connecting cable.
A non-contacting end position minimises damage due to wear and ensures a long service life. The actuator's sturdy aluminium die-cast housing is protected against splashes, water and dust, so it's suitable for use in harsh industrial settings.

• Double-acting actuator appropriate for high-torque and high-speed situations
• Elastic cushioning minimises impact forces in lower-speed applications when the piston reaches the end of the cylinder
• M5 port connection is compatible with standard M5 threads
• Mass moment of inertia of 0.012 kg m² for low resistance to changes in rotational speed
• Operating pressure range of 2 bar to 8 bar for use in a variety of applications
