DRVS-25-180-P, Festo DRVS Series 8 bar Double Action Pneumatic Rotary Actuator, 180° Rotary Angle, 25mm Bore

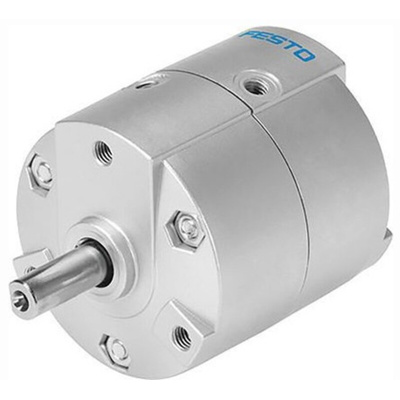

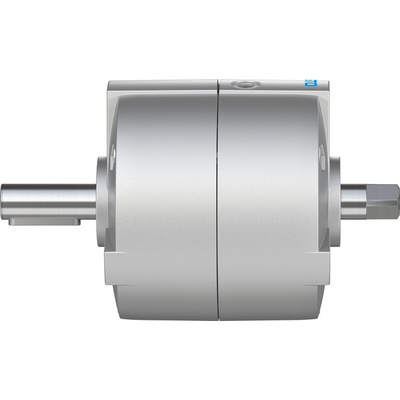

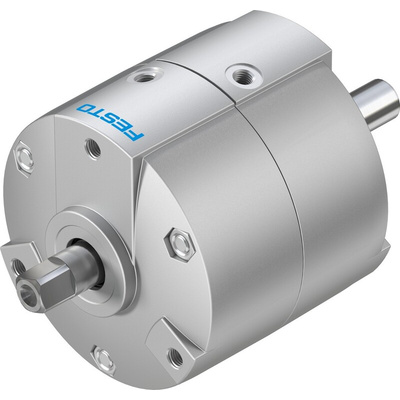

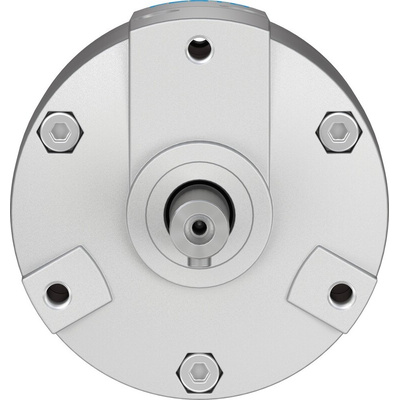

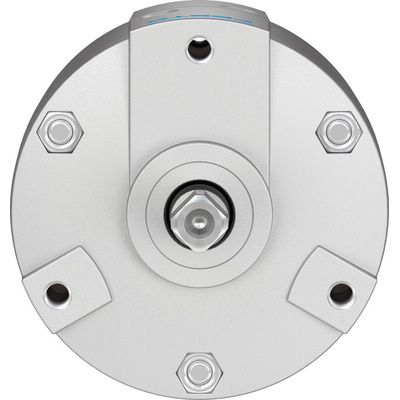

Festo Pneumatic Rotary Actuator, Vane Technology, Die-Cast Aluminium Housing - DRVS-25-180-P

Want to rotate a shaft using your compressed air system? Try this pneumatic rotary actuator from Festo. It converts compressed air into cylinder strokes that can power rotary motion and drive light-torque loads of up to 60N. As a double-acting component, the drive can rotate in either direction for application versatility. Die-cast aluminium housing and two TPE seals at the ends of the drive shaft protect an internal steel ball bearing from being damaged by splashed water or dust. The housing's material also resists wear and abrasion for long service life. A rotary vane technology keeps the unit lightweight, so you can trust it won't add strain to your pneumatic system.

Features & Benefits

• Threaded M5 pneumatic connection ensures a secure fit for stable system pressures
• Nickel-plated steel bore for corrosion resistance and reduced friction
• Adjustable swivel angle for wide compatibility
• Flexible mounting options mean you can install it in any position
• Elastic PU material provides end-position cushioning for the vane to reduce wear in high-energy applications

Applications

• Industrial conveying
• Factory automation and control
• Clamping and positioning

What temperatures can I use this rotary actuator in?

This actuator tolerates an ambient temperature range of 0°C to +60°C, so it's suitable for use in harsh environments.
