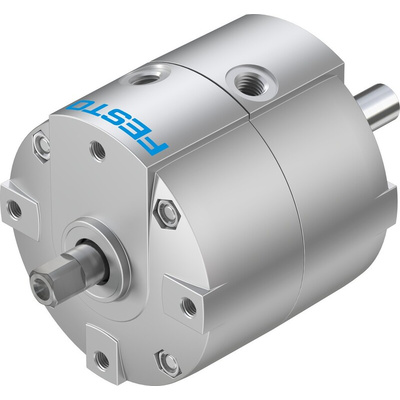

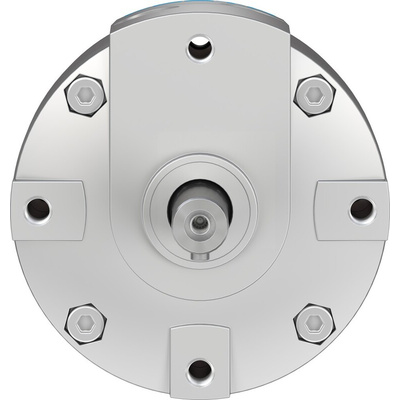

DRVS-32-90-P, Festo DRVS Series 8 bar Double Action Pneumatic Rotary Actuator, 90° Rotary Angle, 32mm Bore

Festo Pneumatic Rotary Actuator, Adjustable Angle, 0°C to +60°C Operating Temperature Range - DRVS-32-90-P

Maintain a precise speed in your air-driven machinery using this pneumatic rotary actuator from Festo. When compressed air flows from the inlet port, it applies force to the internal piston, causing the shaft to spin. As it's double-acting, this unit features open ports on both ends that enable the airflow to move the piston with precision. Flexible cushioning rings soften the blows from impacts, protecting against stress cracking. You can adjust the swivel angle from 0 to 90° to suit the needs of your setup.

Features & Benefits

• Can be mounted in any position for versatile assembly
• Withstands harsh conditions thanks to an operating temperature range of 0°C to +60°C
• Nickel-plated steel drive shaft resists corrosion to deliver a long service life
• TPE-U(PU) seals help prevent air leakage and keep contaminants out

Applications

• Aerospace engineering
• Packaging facilities
• Water treatment plants
• Automotive industry

How do I mount this actuator?

You can mount this actuator by fitting the widely compatible internal threaded end to a G1/8 port.

What's the operating pressure range of this actuator?

This actuator has an operating range of 2 to 8 bar, making it ideal for low-pressure applications.
