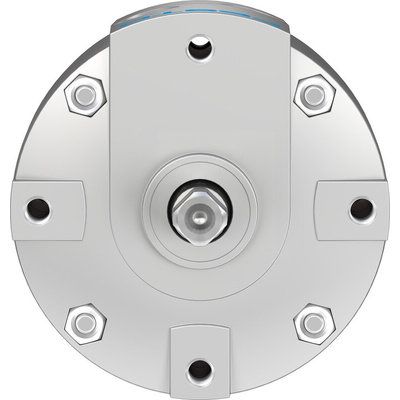

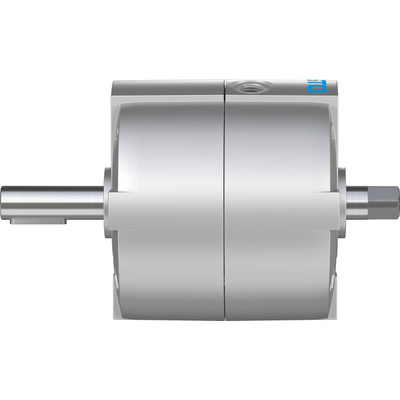

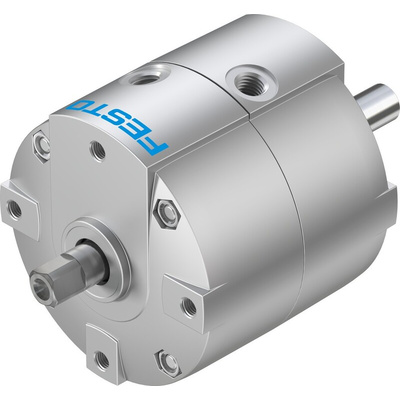

DRVS-32-180-P, Festo DRVS Series 8 bar Double Action Pneumatic Rotary Actuator, 180° Rotary Angle, 32mm Bore

Festo Pneumatic Rotary Actuator, G1/8 Threaded Port, 2 to 8 Bar Operating Pressure Range - DRVS-32-180-P

Get your automated process up and running using this pneumatic rotary actuator from Festo. It works by converting the force of compressed air into rotational motion for a shaft. Installation is a breeze, thanks to the threaded end that fits into a standard G1/8 port. You can install this unit in any position for flexibility in your pneumatic assembly. An operating pressure range of 2 to 8 bar makes it a reliable choice for low-pressure applications.

Features & Benefits

• Double-acting function boosts accuracy and eliminates the need for manual resets
• Flexible cushioning rings at both ends for reduced risk of mechanical damage
• Die-cast aluminium housing provides resistance to corrosion for a long service life
• Weight of 912g puts minimal strain on your setup

Applications

• Food and beverage production
• Printing presses
• Packaging plants
• Pharmaceutical industry

What's the rotary angle of this actuator?

This actuator has a rotary angle range of 0 to 180°, so you can adjust it to precisely suit your system.

Is this actuator sealed?

Yes, this actuator has robust TPE-U(PU) seals that resist chemicals and solvents to ensure safe operation in contaminated industrial environments.

Datasheet

Festo Pneumatic Cylinders Operating Manual

DRVS-32-180-P Specification Sheet

Brochure - Simply Part of the Solution

Instruction Sheet - Semi-Rotary Drive
