DSNU-20-300-P-A, Festo Pneumatic Cylinder - 19217, 20mm Bore, 300mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

1366651
Номер производителя: DSNU-20-300-P-AПроизводитель: Festo
Цена за шт.
23790.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

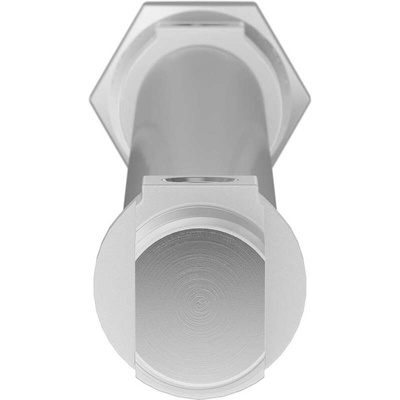

Festo Pneumatic Cylinder, Wrought Aluminium Alloy Cover, 186.8g Weight - DSNU-20-300-P-A

When you need a helping hand to move industrial loads, turn to this pneumatic cylinder from Festo. It's a double-acting unit in which forward and backward thrusts are controlled by compressed air alternating between its two ports. With a 300mm stroke length, the device is the right choice for long-span operations like lifting and clamping. It's built for rugged conditions, with wrought aluminium alloy housing protecting against corrosion and mechanical impact. Flexible cushioning rings at both ends of the cylinder are on hand to support smooth operation by reducing noise and vibration.

Features & Benefits

• Weighs just 186.8g, so it's easy to handle during assembly and doesn't put strain on your equipment
• Works with a proximity sensor to enable automated operation
• NBR seals block out dust and prevent leakage to ensure optimal performance
• Advance stroke force of 188.5N and return stroke force of 158.3N make it the right choice for light-duty applications

Applications

• Chemical laboratories
• Medical equipment
• Automatic doors
• Material handling

Can I use this pneumatic cylinder with lubricated media?

Yes, this unit supports lubrication as long as it's sustained during further operation.

What's the maximum operating temperature the cylinder can handle?

It reliably withstands ambient temperatures as high as +80°C and as low as -20°C.

Техническая спецификация
pdfDatasheet
pdfFesto Pneumatic Cylinders Operating Manual
pdfDSNU-20-300-P-A Specification Sheet
pdfBrochure - Simply Part of the Solution
pdfInstruction Sheet - Round Cylinder
Вес:
402.8g
Вес интервала хода:
7.2 (At 10 mm Stroke) g
Давление - максимальное рабочее:
10 бар
Действие:
Double
Диаметр:
27мм
Длина:
441.5мм
Испытательный вес:
186.8 (At 0 mm Stroke) g
Модель р:
19217
Отверстие:
20мм
Пневматическое соединение:
G 1/8
Производитель - серия:
DSNU
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-20°C
Размеры:
27 x 441.5mm
Род резьбы поршневого стержня:
Male
Стандарт ISO:
ISO 6432
Стандарт VDMA:
VDMA24364-B1/B2-L
Тип демпфирования:
Эластомер
Ход:
300мм
