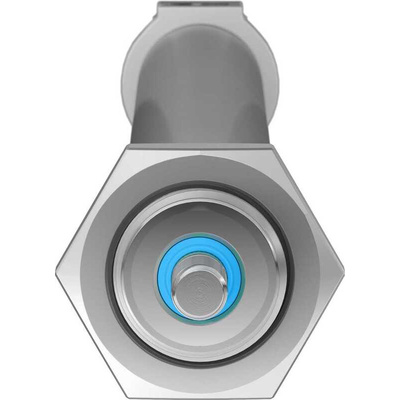

DSNU-20-300-PPV-A, Festo Pneumatic Cylinder - 19244, 20mm Bore, 300mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, PPV Cushioning, G1/8 Pneumatic Connection - DSNU-20-300-PPV-A

Easily move loads through your industrial system with the help of this pneumatic cylinder from Festo. It's a versatile unit with a 300mm stroke length, making it suitable for long-span lifting operations. The double-acting device responds to compressed air alternating between its two ports, which pushes its piston back and forth. Its wrought aluminium alloy housing holds out against impact and corrosion, so you get dependable service in harsh environments. NBR seals block out dust and contaminants, preventing blockages to ensure consistent performance.

Features & Benefits

• Adjustable PPV cushioning on both ends to absorb shock in high-speed applications
• Safe to use in challenging settings, thanks to an operating temperature range between -20°C and +80°C
• G1/8 threaded ports for easy installation in your setup
• Compatible with proximity sensors for automated operation
• Can be assembled in any position to suit your design

Applications

• Safety gates
• Baggage-handling equipment
• Lifts and escalators

How much does this cylinder weigh?

This unit weighs just 186.8g, so it's easy to handle during installation and won't put a strain on your mounting surface.

What size is the cylinder?

It's a space-saver that measures 441.5mm in length and has a narrow diameter of 27mm.
