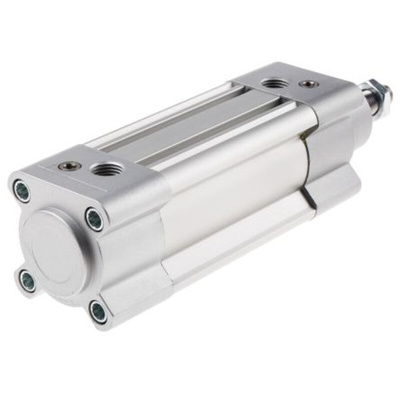

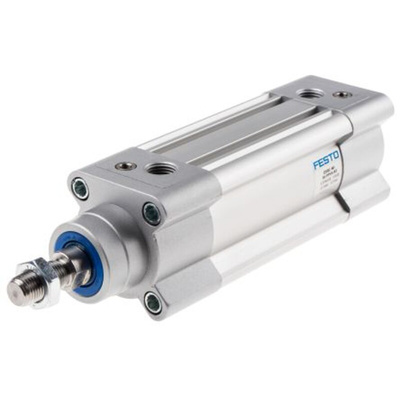

DSBC-40-60-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 2123224, 40mm Bore, 60mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, Piston Rod, 60mm Stroke - DSBC-40-60-PPVA-N3

When you're looking for a compact device for pushing operations in your pneumatic system, choose this double-acting cylinder from Festo. It works by extending and retracting its piston rod according to the pressure difference between its two air ports. The unit's die-cast aluminium housing is durable and resistant to corrosion, making it suitable for use in harsh environments. For extended service life, it has adjustable PPV cushioning on both ends to reduce vibration and noise. As you can assemble this cylinder in any position, it's a versatile choice.

• Broad operating temperature range between -20°C and +80°C for use in extreme conditions
• Compatible with proximity sensors for automated operation
• Thermoplastic PU seals to prevent air leakage and support optimal performance
• Light weight of 740g makes it easy to handle during installation
• Maximum operating pressure of 12 bar for heavy-duty applications

Applications

• Material handling equipment
• Robotics and automation industries
• Lifts

What's the operating force of this cylinder?

At 6 bar pressure, this cylinder has an advance force of 754N and retract force of 633N, making it a practical choice for intense and demanding applications.
