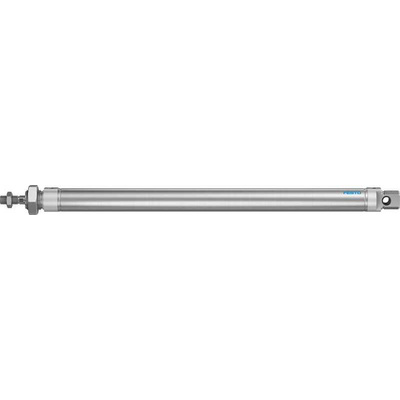

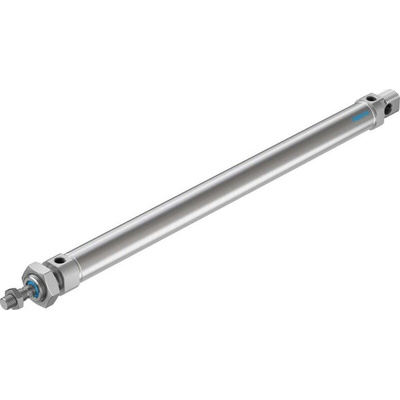

DSNU-25-320-P-A, Festo Pneumatic Cylinder - 34719, 25mm Bore, 320mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, 1 to 10 Bar Operating Pressure, M10x1.25 Piston Rod Thread - DSNU-25-320-P-A

Need to get your system's parts on the move? Give them a push with this Festo pneumatic cylinder. As a double-acting model, it uses air to extend and retract its piston, closely measuring its stroke every time. Shifting heavy loads is no sweat, as the unit delivers forces up to 294.5N at 6 bar pressure to tackle demanding applications. You'll have no difficulty integrating it into your setup, as it supports both clean and lubricated air. With a stroke length of up to 320mm, this cylinder has the long reach needed for larger-scale operations.

Features & Benefits

• Durable aluminium alloy housing is corrosion-resistant, so stays strong in damp settings
• Built-in elastic end cushioning cuts down on vibrations and supports smooth running
• M10x1.25 piston rod thread for wide compatibility with connecting parts
• Safe to use in temperatures between -20°C and +80°C, giving you reliable performance in tough industrial conditions

Applications

• Manufacturing facilities
• Plastics processing
• Logistics industry

Can I track the position of this cylinder's piston?

Yes, this cylinder supports a proximity sensor (such as 253-9245) to automatically signal its stroke position, making for quick spot checks.

Datasheet

Festo Pneumatic Cylinders Operating Manual

DSNU-25-320-P-A Specification Sheet

Instruction Sheet - DSNU(-S)
