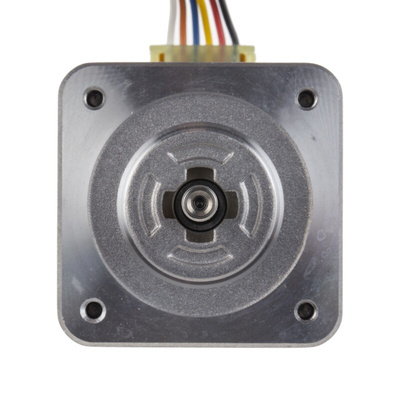

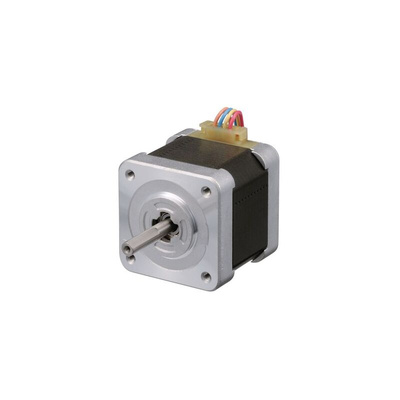

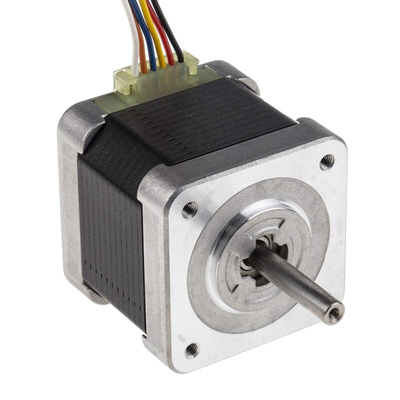

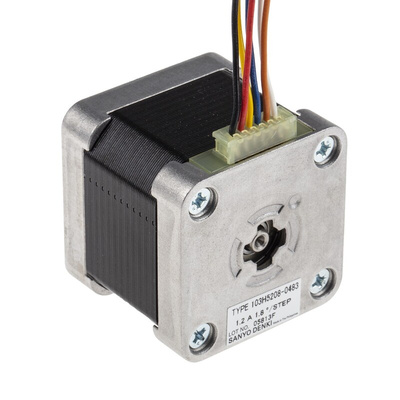

103H5208-0483, Sanyo Denki 103H5 Series Hybrid, Single Shaft Stepper Motor, 0.30Nm Torque, 24 V, 1.8°, 42 x 42mm Frame, 5mm Shaft, Шаговый двигатель

Sanyo Denki Stepper Motor, 2 Phases, 1.2A Current Rating - 103H5 Series - 103H5208-0483

Keep your positioning tasks on the right track using this two-phase stepper motor from Sanyo Denki. A step angle of 1.8° ensures a high degree of precision. You can reach a maximum holding torque of 0.3Nm while keeping a low speed for close control when engraving or CNC machining. Insulation between its winding and frame puts a barrier between you and an electrical current to cut down on the risk of electric shocks. Thanks to its current rating of 1.2A, it's just the thing for use in low-power applications.

Features & Benefits

• Wide operating temperature range between -10°C and +50°C for use in demanding environments
• Maximum winding temperature rise of 80K, which helps to keep it running cool
• Compact size of 42 (H) x 42 (W) x 39mm (D) to take up minimal mounting space

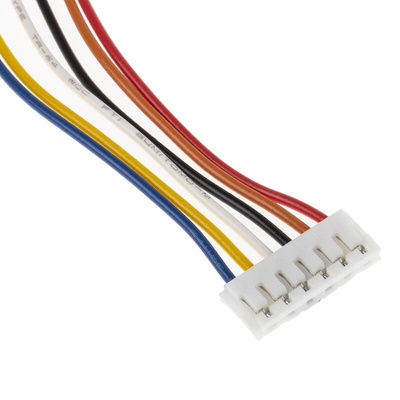

• Colour-coded conductors make wiring a cinch

Applications

• 3D printers and scanners
• Robotics
• Process automation
• Variable speed drives

What's this stepper motor's voltage rating?

This stepper motor has a voltage rating of 24V, making it compatible with low-power systems.
