103H7123-1749, Sanyo Denki 103H7 Series Hybrid, Single Shaft Stepper Motor, 1.10Nm Torque, 24 V, 1.8°, 56 x 56mm Frame, 6.35mm Shaft, Шаговый двигатель

Sanyo Denki 103H7 Series Stepper Motor

Sany Denki range of 103H7 Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered.

Offered in both Unipolar & Bipolar winding options
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution
Leaded options also available

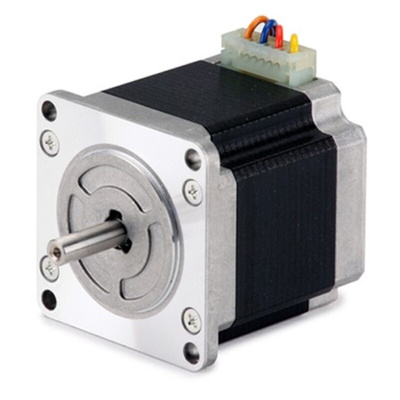

Sanyo Denki Stepper Motor, 4A Current Rating, 2 Phases - SANMOTION 103H7 Series - 103H7123-1749

For the precise positioning of rotating parts on your machines, choose this stepper motor from Sanyo Denki. As it's a hybrid device, it combines a permanent magnet with stator and rotor teeth to give pulsing movements at a step angle of 1.8° for highly precise rotations. Its current rating of 4A means it's suitable for use with low-power equipment. A shaft diameter of 6.35mm makes it a good choice for use with small devices.

Features & Benefits

• Low resistance of 0.4Ω per phase for reliable signal transmission
• Holding torque of 1.1Nm for a secure grip on connected equipment
• Supplied with mounting screws for simple and quick installation

Applications

• Telecommunication equipment
• Mainframe computers
• Printers

How do I maintain this stepper motor?

As this motor is a brushless device, it doesn't have parts that would need replacement on a regular basis. This means it doesn't need any maintenance, saving you time and effort.

How much voltage does this motor need to work?

This stepper motor works with a supply voltage of 24V, making it suitable for use in low-voltage systems.
