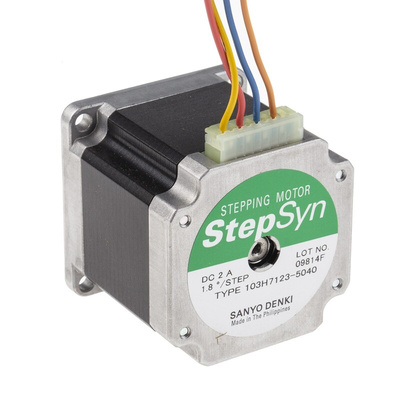

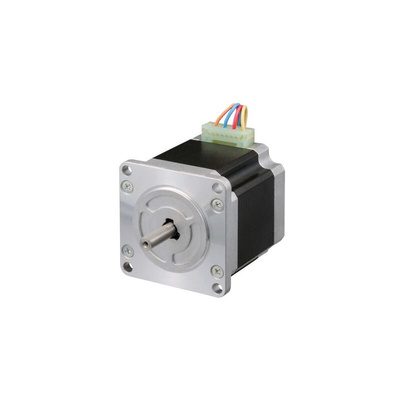

103H7123-5040, Sanyo Denki 103H7 Series Hybrid, Single Shaft Stepper Motor, 0.83Nm Torque, 24 V, 1.8°, 56 x 56mm Frame, 6.35mm Shaft, Шаговый двигатель

Sanyo Denki Stepper Motor, 3.8mH Inductance Per Phase, 2A Current Rating - 103H7 Series - 103H7123-5040

Step up the precision of your positioning tasks with this stepper motor from Sanyo Denki. The low step angle of 1.8° ensures highly accurate movements. It packs a punch as it delivers 0.83Nm of holding torque, even at low speeds. This makes it a reliable performer for any situation that requires holding a load against an external force while the motor is stationary.

Features & Benefits

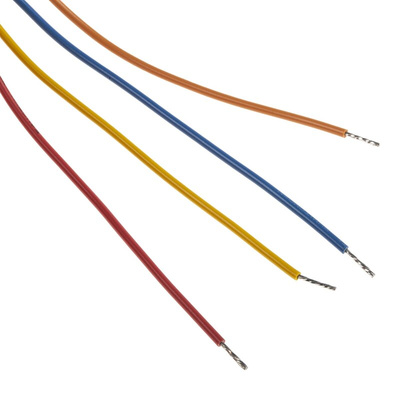

• Colour-coded wires for a simple set-up

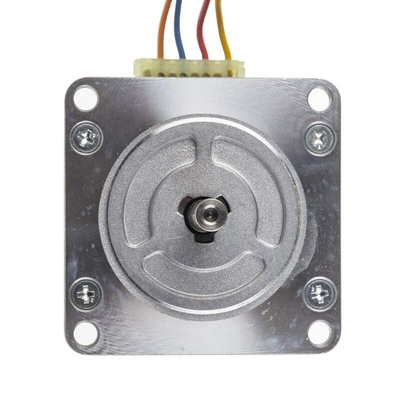

• Compact dimensions of 56 (L) x 56 (W) x 53.8mm (D) make it ideal for installation in tight spaces
• Light weight of just 0.65kg to place minimal strain on your equipment

Applications

• Medical equipment
• Laboratory instruments
• Conveyors
• Filling machines

What are the dimensions of the stepper motor's shaft?

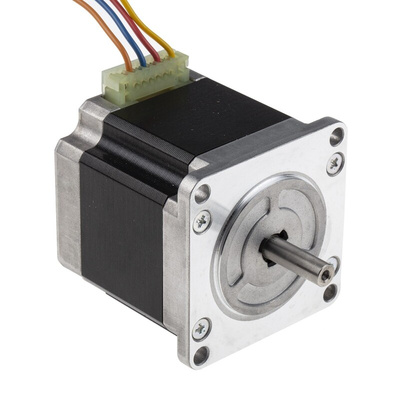

This stepper motor has a cylindrically shaped shaft with dimensions of 20.6 (L) x 6.35mm (diameter). These standard dimensions mean it will easily fit a commercially made gear, pulley or similar component.

What supply voltage does this stepper motor need?

This stepper motor works with a 24V supply voltage, so it's compatible with low-power setups.
