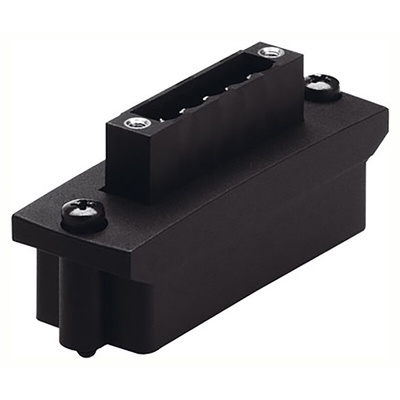

FBA-1-SL-5POL, Festo FBA Plug Connector

Fieldbus Module Adaptor

FBA-1, FBA-2

• Plugs and plug sockets for fieldbus connection
• 136-6739, straight socket Sub-D 9-pin to straight plug M12 5-pin, for CANopen/DeviceNet
• 136-6738, straight socket Sub-D 9-pin to straight plug/socket M12 5-pin, for CANopen/DeviceNet
• 136-6748, straight plug Sub-D 9-pin to straight plug/socket M12 5-pin, for PRPFIBUS/CC-LINK

FBSD

• Plug sockets for fieldbus connection
• Connection cross section: 0.75 mm² to 2.5 mm²
• 136-6557, straight socket M12 5-pin, for FBA-2-M12-5POL
• 136-6740, angled socket 5-pin, screw terminal, for FBA-1-SL-5POL

FBS-SUB

• Fieldbus plug with 9-pin Sub-D connection
• Connection cross section: 0.75 mm²
• 136-6555, straight plug for FBA-2-M12-5POL
• 136-6747, plug for DeviceNet/CANopen
• 136-6746, straight plug for PROFIBUS
• 136-6751, angled plug for CANopen
• 136-6750, plug for PROFIBUS

FBTA

• T-adapter for fieldbus connection on valve terminals
• 136-6551, plug M12 5-pin to 2 x socket M12 5-pin

Fieldbus Modules

FBA-1-SL-5POL Specification Sheet
