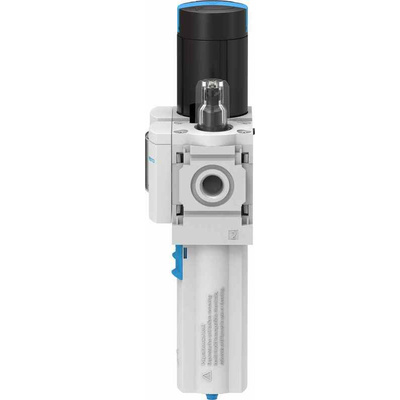

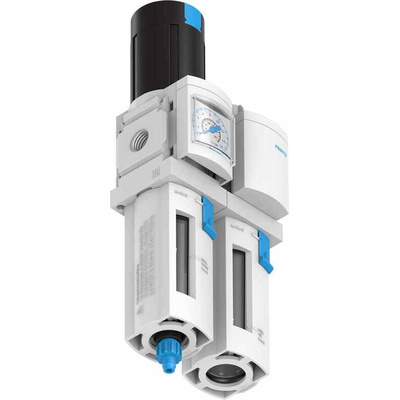

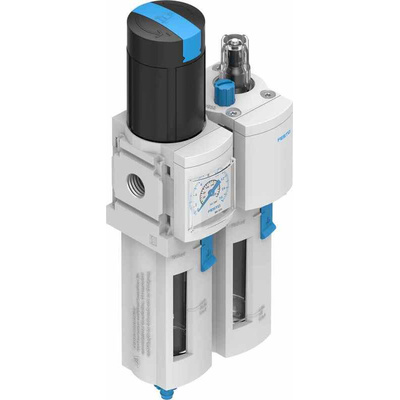

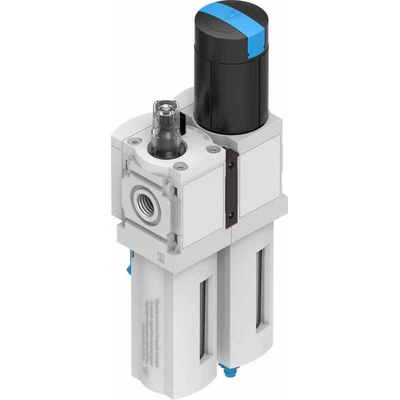

MSB4-1/4-FRC5, Festo G 1/4 Filter Regulator Lubricator, Manual Drain, 40μm Filtration Size, Сборка

FESTO MSB Series Filter Regulator Lubricator

The FESTO MSB series is a filter regulator with pressure gauge and proportional standard mist lubricator. It has a lockable regulator head, plastic bowl/guard and manual condensation drain.

Features and Benefits

• Direction of flow: from left to right

• Manual rotary condensate drain

• Operating pressure: 1.5 bar to 14 bar

• Flow rate: MSB4 is 900 L/min, MSB6 is 3700 L/min

• Pneumatic connection: MSB4 is G1/4, MSB6 is 1/2

• Corrosion resistance classification 2 (moderate corrosion stress)

• Aluminium diecast housing with plastic bowl and guard

Standards

Compressed air to ISO 8573-1:2010 [-:4:-] inert gases.

MSB4-1/4-FRC5:J1M1 FRL (Filter Regulator Lubricator) Assembly

• 2 Pneumatic connections, both with G1/4 ports

• Ambient Operating Temperature: -10 to 60°C

• Operating pressure 1.5 to 14 bar

• Pressure regulation range of 0.5 to 12 bar

• 40 μm filtration grade

Filter Regulator Lubricator

Datasheet

MSB4-1/4-FRC5:J1M1 Specification Sheet
