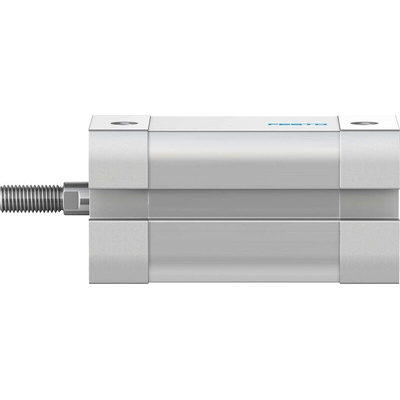

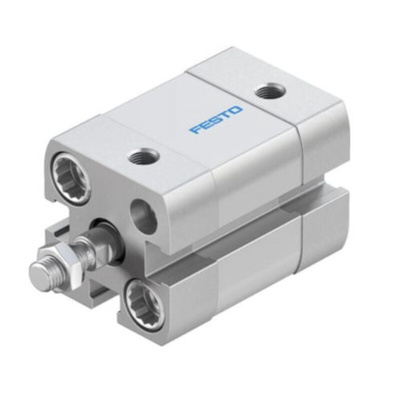

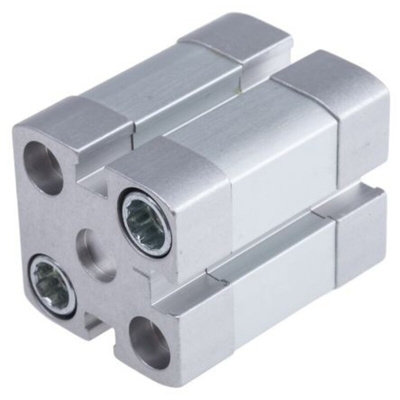

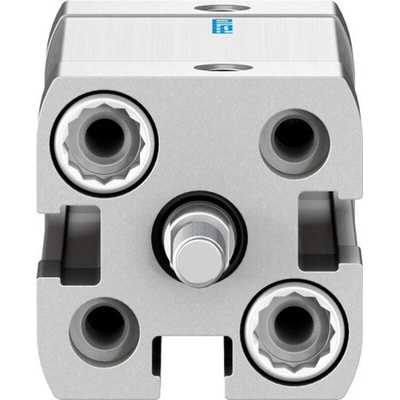

ADN-12-20-A-P-A, Festo Pneumatic Cylinder - 536207, 12mm Bore, 20mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, 1 to 10 Bar Operating Pressure Range, M5 Piston Rod Thread - ADN-12-20-A-P-A

Looking for a reliable way to drive linear motion in your system? Grab this pneumatic cylinder from Festo. It ejects, clamps and positions objects in a straight line with a compact 20mm stroke. By taking in compressed air at both ends for thrust and retraction, the unit delivers accuracy and efficiency. You'll find slots on three sides, making it a cinch to flush-mount a proximity sensor and enable contactless item detection. The aluminium alloy barrel shrugs off corrosion and performs reliably in demanding temperatures between -20°C and +80°C.

Features & Benefits

• Small size of 59.2 (L) x 27.5 (W) x 27.5mm (H) takes up minimal installation space
• Low-friction design to minimise wear and heat build-up
• TPE-U(PUR) seals keep the unit airtight
• Flexible cushioning absorbs impacts to stretch the service life of the device

Applications

• Automotive manufacturing
• Dental equipment
• Medical imaging machinery
• Automated factory processes

What type of port connection does this pneumatic cylinder have?

The unit has an M5 port connection for easy compatibility with standard fittings.

In what position should I mount this pneumatic cylinder?

You can mount this flexible component horizontally or vertically, depending on what's best for your system.
