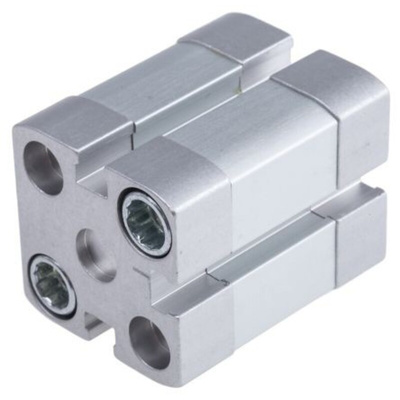

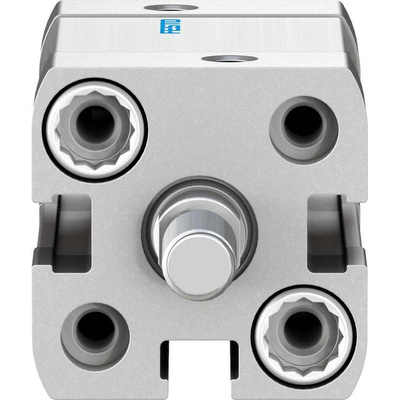

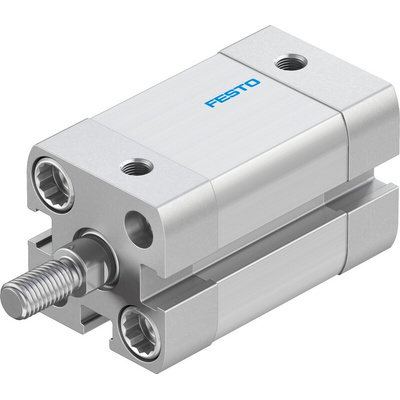

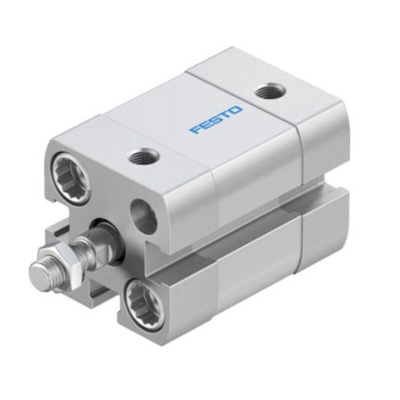

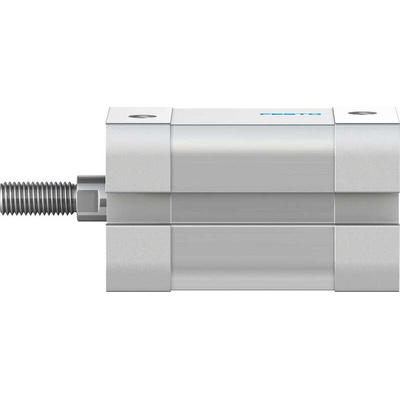

ADN-16-15-A-P-A, Festo Pneumatic Cylinder - 536221, 16mm Bore, 15mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, High-Alloy Steel Piston Rod Material, 1 to 10 Bar Operating Pressure Range - ADN-16-15-A-P-A

Use this pneumatic cylinder from Festo to keep your industrial loads in line. As it's a double-acting type, it has two ports that accept compressed air, allowing the piston rod to move forward and backwards. It features cushioning at both ends that reduce noise and impact for optimal performance and minimal wear. Thanks to an advance stroke force of 121N and a return stroke force of 90N, this piece of kit is a reliable choice for heavy-duty machinery.

Features & Benefits

• Performs reliably at temperatures between -20°C and +80°C for use in demanding environments
• TPE-U seals keep out contaminants and prevent leaks to ensure optimal operation
• Broad operating pressure range of 1 to 10 bar means it's suitable for low and high-pressure equipment
• Stroke length of 15mm for short-range movement

Applications

• Mining industry
• Food and beverage processing plants
• Agricultural equipment

Is this unit corrosion-resistant?

Yes, the barrel is made from wrought aluminium alloy and the piston rod is made from high-alloy steel, so the device stands strong against corrosion.
