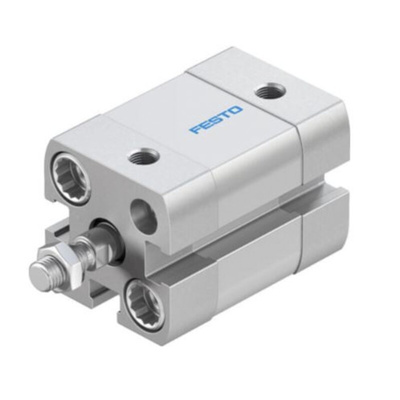

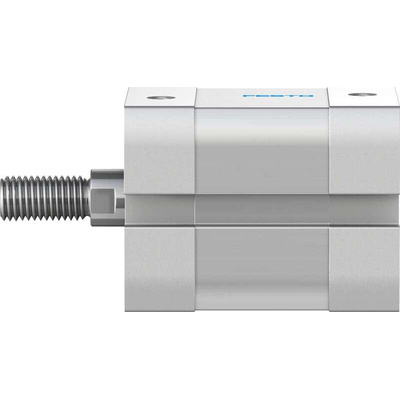

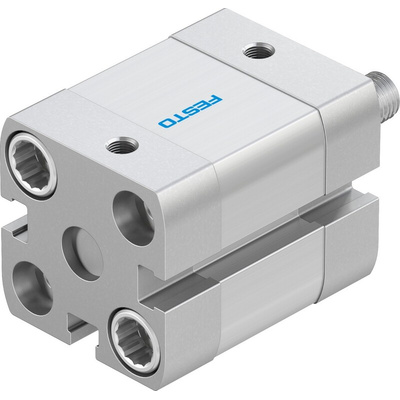

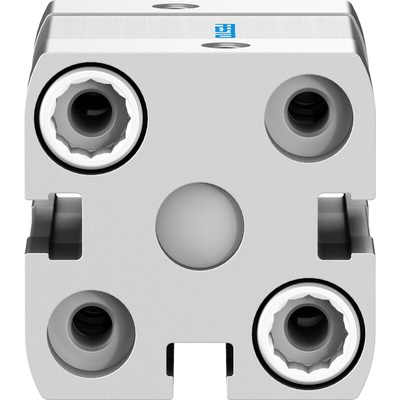

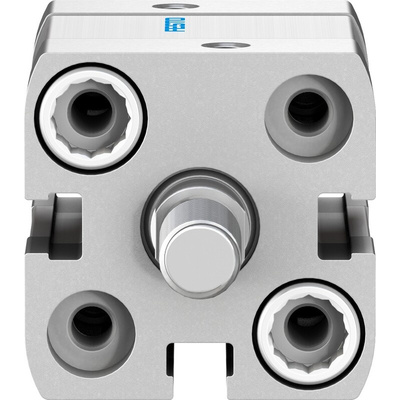

ADN-20-20-A-P-A, Festo Pneumatic Cylinder - 536237, 20mm Bore, 20mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, 0.6 to 10 Bar Operating Pressure Range, M8 Piston Rod Thread Size - ADN-20-20-A-P-A

Breathe new life into your system with this Festo pneumatic cylinder. It's a double-acting type that allows for extension and retraction of the piston rod, giving you precise linear motion in two directions. As its built-in cushioning rings absorb forces from the movement of the rod, the unit cuts down on wear to stay in top form. For versatility, it's compatible with lubricated and non-lubricated compressed air. Thanks to its wrought aluminium alloy barrel and high-alloy steel piston rod, this cylinder stands strong against impact and corrosion.

Features & Benefits

• M8-sized piston rod thread for ease of attachment to standard components
• Works reliably at temperatures between -20°C and +80°C for use in harsh conditions
• Stroke length of 20mm for short-distance movement
• Assembly possible in any position for flexible installation

Applications

• Material handling
• Processing plants
• Automotive manufacturing

Can I use this pneumatic cylinder in high-pressure applications?

Yes. Thanks to its wide operating pressure range of 0.6 to 10 bar, this pneumatic cylinder is suitable for use in both low and high-pressure applications.
