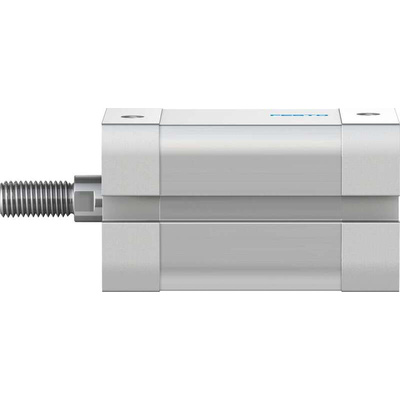

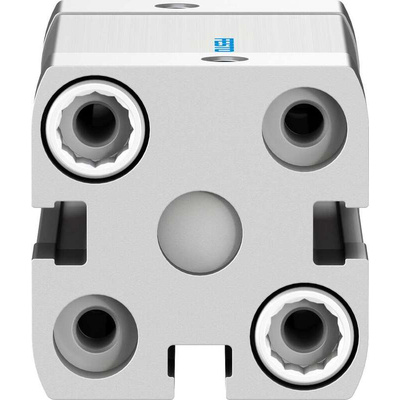

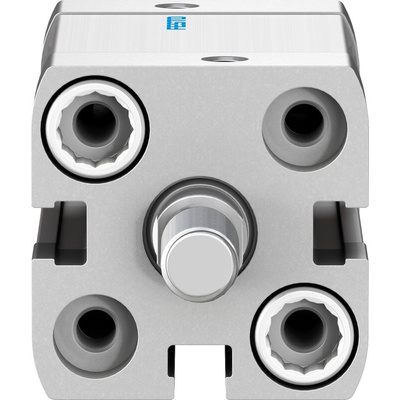

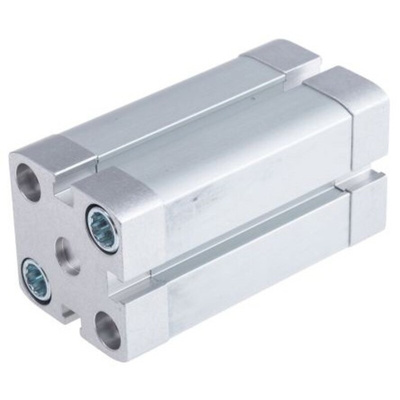

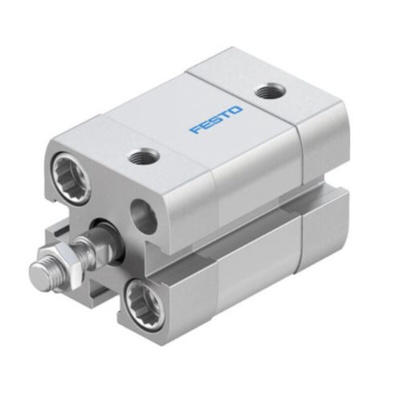

ADN-20-25-A-P-A, Festo Pneumatic Cylinder - 536238, 20mm Bore, 25mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, M5 Port Connection, Male Piston Rod Thread - ADN-20-25-A-P-A

Need a way to get things moving in a straight line through your automated system? This pneumatic cylinder from Festo takes care of the task. As it's a double-acting type, you can use it to apply both pushing and pulling forces, which boosts precision and efficiency. With a bore of 20mm and a stroke of 25mm, it's suitable for handling medium loads. The unit's magnetic piston rod makes contactless position detection possible when you add a proximity sensor (such as 175-4514), for increased accuracy.

• Flexible polymer end cushioning reduces noise and vibration
• Can be mounted horizontally or vertically for convenience
• Standard M5 connections for hassle-free installation
• Compact dimensions of 35.5 (W) x 67.5 (L) x 35.5mm (H) to save space in busy sytems

Applications

• Automotive manufacturing
• Mechanical engineering
• Robotics systems

Can this pneumatic cylinder be used in demanding environments?

Yes, it has a wide operating temperature range between -20°C and +80°C, so it copes well in harsh conditions.

What's the maximum operating pressure this pneumatic cylinder can handle?

It has a maximum operating pressure of 10 bar, so it's a versatile option.
