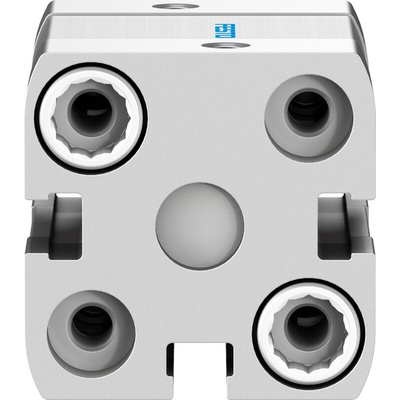

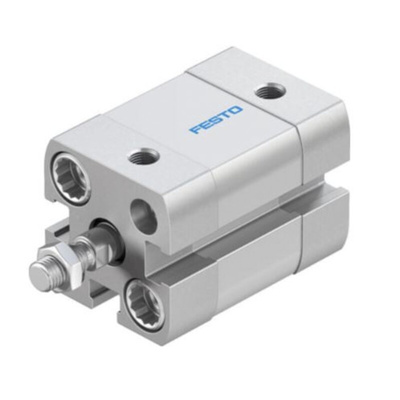

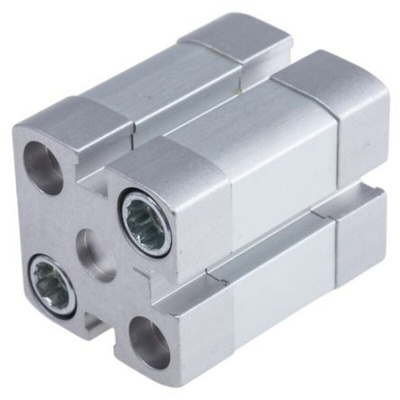

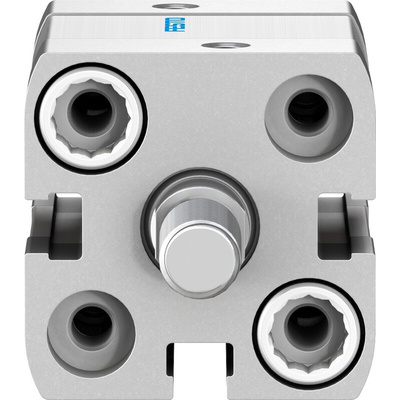

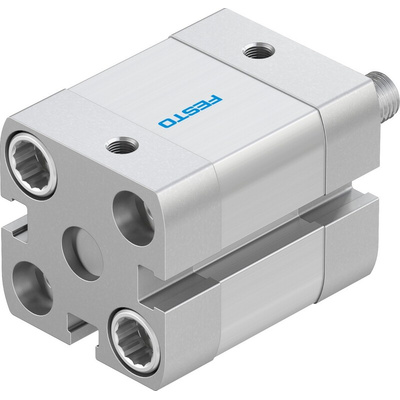

ADN-25-10-A-P-A, Festo Pneumatic Cylinder - 536252, 25mm Bore, 10mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, 0.6 to 10 Bar Operating Pressure, M5 Port Connection - ADN-25-10-A-P-A

Blow through busy sorting tasks with this pneumatic cylinder from Festo. By achieving forces up to 295N at 6 bar, it keeps large loads moving along for smooth processing. As the unit's ports take in air to push and pull, the double-acting device provides close position control to place products where they need to be. Narrow workspaces are no issue thanks to its 10mm maximum stroke length. With this cylinder's regulation M8-thread piston rod, it has wide compatibility for fuss-free connections.

Features & Benefits

• Aluminium alloy casing has corrosion resistance for longevity
• Flush-mounting slots for a proximity sensor (121-5836) provide hassle-free contactless position monitoring
• Flexible cushioning at both ends minimises friction for steady running
• Airtight PUR seals block leaks for stable system pressure

Applications

• Gas and oil industries
• Agricultural machinery
• Textile manufacturing

How does cushioning help the pneumatic cylinder's performance?

Cushioning pads dampen the impact of the rod's strokes, cutting down on friction to ensure smooth performance. They also reduce noise at high operating speeds to minimise disruption during intense workloads.

FESTO ADN Series

Datasheet

Festo Pneumatic Cylinders Operating Manual

ADN-25-10-A-P-A Specification Sheet

Brochure - Core Product Range
