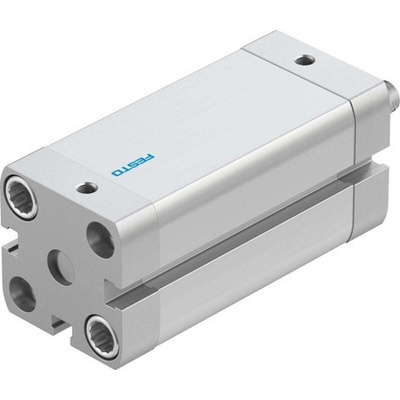

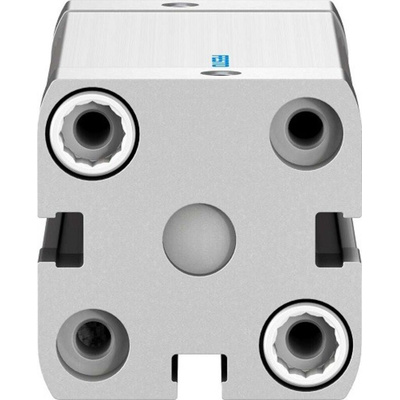

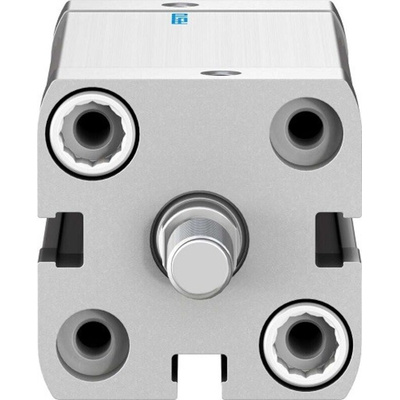

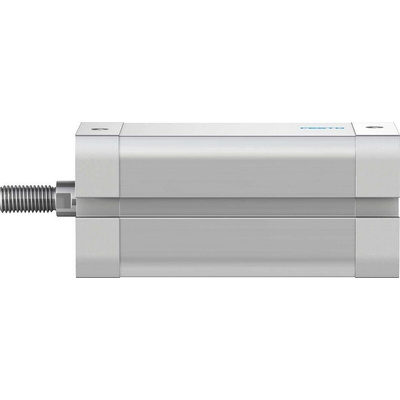

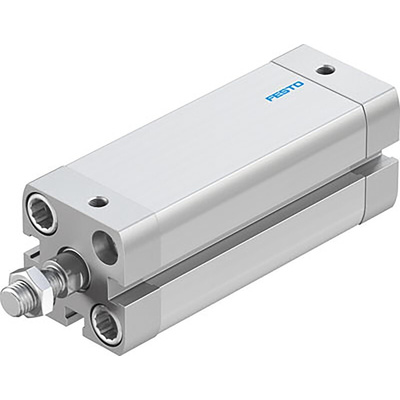

ADN-25-50-A-P-A, Festo Pneumatic Cylinder - 536258, 25mm Bore, 50mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, Wrought Aluminium Alloy Barrel, 0.6 to 10 Bar Operating Pressure Range - ADN-25-50-A-P-A

Set your machinery on the straight and narrow with this pneumatic cylinder from Festo. It's double-acting, which means that open ports at both ends let air in and out. This pushes the piston rod back and forth to create linear motion in both directions. An operating pressure range between 0.6 and 10 bar makes this a suitable option for low-pressure environments. Thanks to its compact external dimensions of 94.5 (L) x 39.5 (W) x 39.5mm (D), it takes up minimal space, making it ideal for clamping and ejecting small workpieces in your automated system.

Features & Benefits

• Slots on 3 sides let you mount a proximity sensor to track the piston
• Wrought aluminium alloy barrel resists mechanical wear
• Threaded ports for hassle-free installation
• Robust TPE-U seals prevent air leakage

Applications

• Medical technology
• Elevators and escalators
• HVAC systems
• Packaging facilities

Which way up should I mount this cylinder?

You can mount this cylinder in a horizontal or vertical position to suit the design of your equipment.

Can I use this cylinder with lubricated media?

Yes, but it's important to note that, if lubricated once, it can only work with lubricated air going forward.
